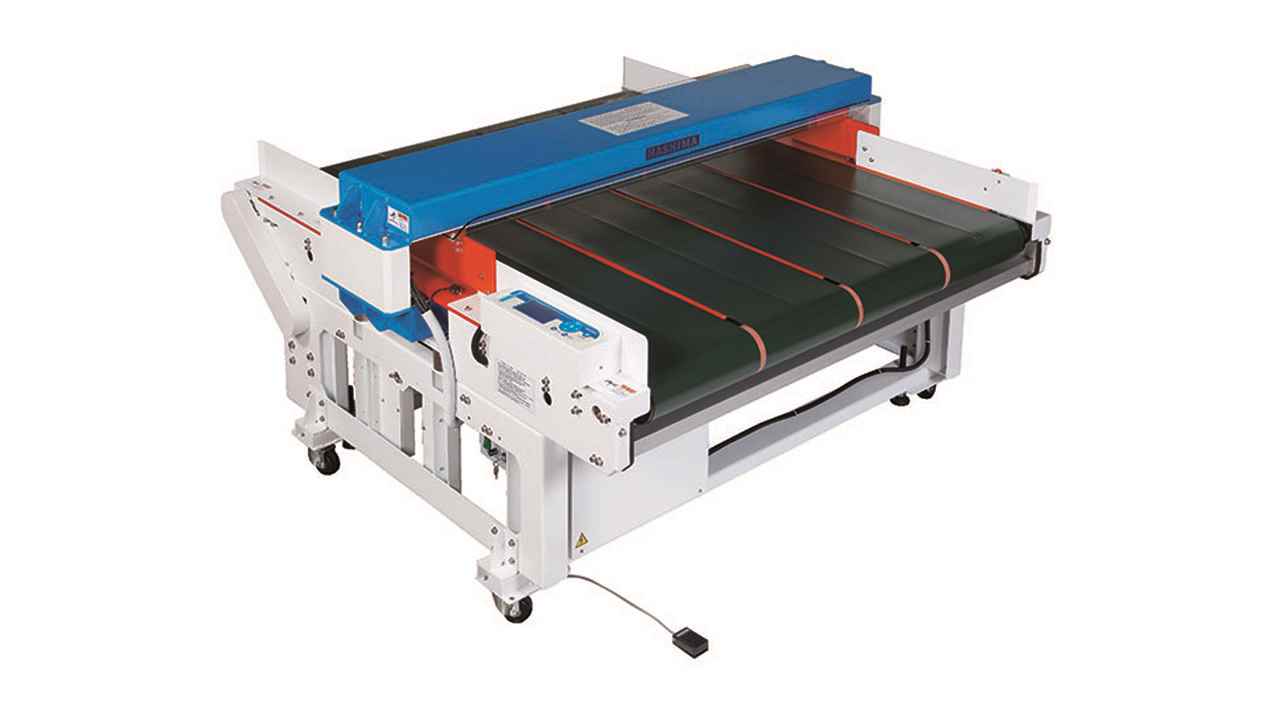

HN-1370C / HN-1570C, Large Size Conveyor

Large size conveyor type needle detector

Features

Adoption of new developed detecting sensor.
Improvement of performance for an outside noise.
The belt speed that connect to detecting ability is No.1on this class.
This machine has return device that the products return to an operator after making alarm when the machine detects foreign object in products.

Technical Specifications

Model	HN-1370C/HN-1570C
Detection Method	Magnetic induction
Detection Ability	1.2mm sphere or above
Detection Levels	Step-less
Detection Width	1,300mm / 1,500mm
Detection Height	130mm
Alarm Method	Buzzer, lamp
Belt Speed	Appr. 30m/min
Power Supply	Single phase
Dimension	1,865(D)X1,760(W)X1,080(H)mm (1370C)
Weight	Appr. 400kg
Product Guider	Standard
