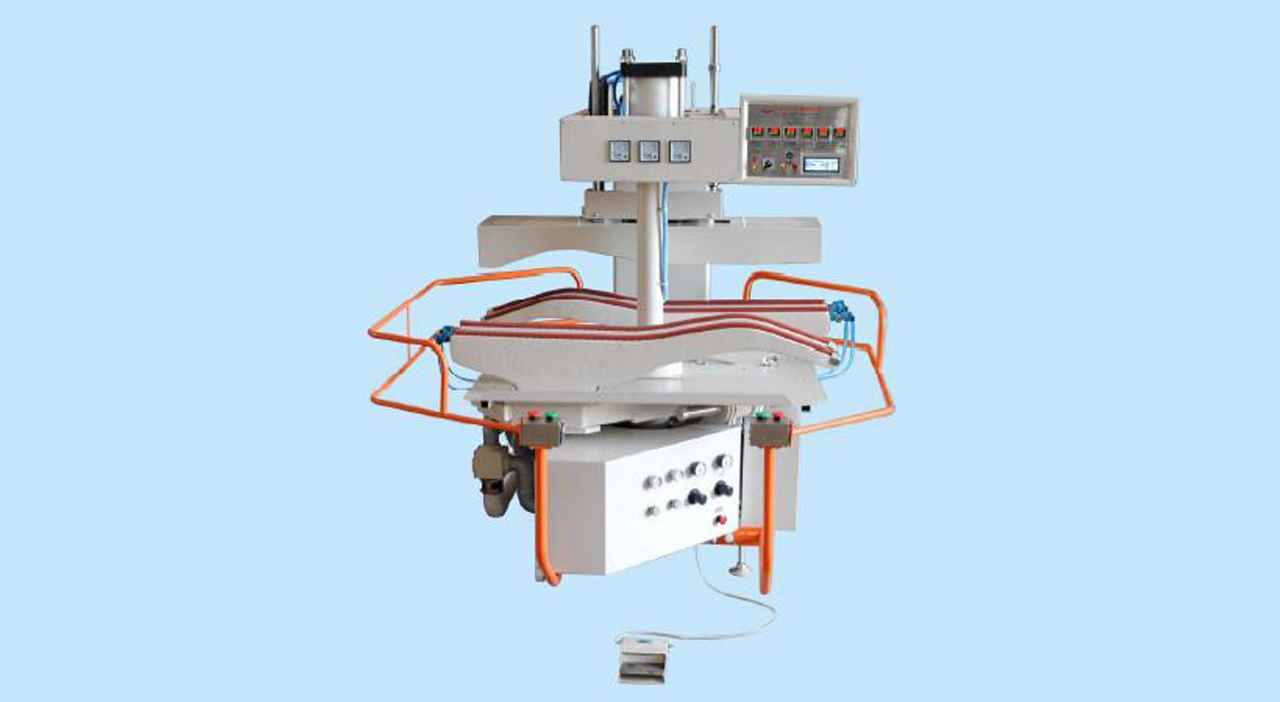

NS-9502, Automatic Rotation Side Seam Press

Automatic Rotation Side Seam Press


  • Suitable for shirt side seam fusing and pressing
  • Adopt PLC and human friendly touch screen for operation
  • Vertical adding pressure mode for a more flat pressing effect and higher efficiency
  • Combination of gently pressing and heavily pressing could meet requirements for different kinds of fabric
  • Apply six independent digital thermostats for controlling the temperature of the upper mould very accurately
  • Automatic rotational double lower mould is designed for easy operation and high work efficiency
  • One upper mould of heating type works together with two lower moulds alternatively which can save power
  • Combination of air bag of the lower mould and rubber strips (resistant to high temperature and high pressure ) will completely offset the shape tolerance between the mould and side seam.
  • Furthermore, it can help different fabrics to achieve the best pressing effect
  • Equipped with independent vacuuming system for fixing, cooling and shaping the garment.

Technical Specifications

Model NS-9502
Power Supply 3PH/380V/50Hz
Total Power (kW) 5.7

Heater Power (kW)

Vacuum Pump Power (kW) 1.5
Compressed Air pressure (kgf/cm²) 5
Compressed air consumption (L/min) 180
Machine size (mm) 1750x1870x1980

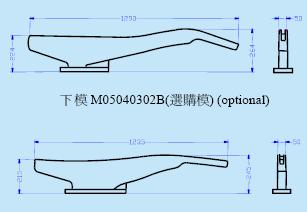

Machine Drawing
