NS-9501, Automatic Rotation Arm Hole Press

Automatic Rotation Armhole Press

Features

  • Suitable for armhole fusing and ironing
  • Adopt PLC and human friendly touch screen for operation
  • Vertical adding pressure mode for a more flat pressing effect and higher efficiency
  • Totally two pressing modes including gently pressing and heavy pressing are available for different fabrics
  • Apply three independent digital thermostats for controlling the temperature of the upper mould very accurately
  • Automatic rotation lower mould is applied for easy operation and high efficiency
  • One upper mould of heating type works together with two lower moulds alternatively which can save power
  • Combination of air bag of the lower mould and rubber strips (resistant to high temperature and high pressure ) will completely offset the shape tolerance between the mould and armhole. Furthermore, it can help different fabrics to achieve the best pressing effect
  • Equipped with independent vacuuming system for fixing, cooling and shaping the garment


Technical Specifications

Model NS-9501
Power Supply 3PH/380V/50Hz
Total Power (kW) 3.9

Heater Power (kW)

2.4
Vacuum Pump Power (kW) 1.5
Compressed Air pressure (kgf/cm²) 5
Compressed air consumption (L/min) 180
Machine size (mm) 1520x1500x1920

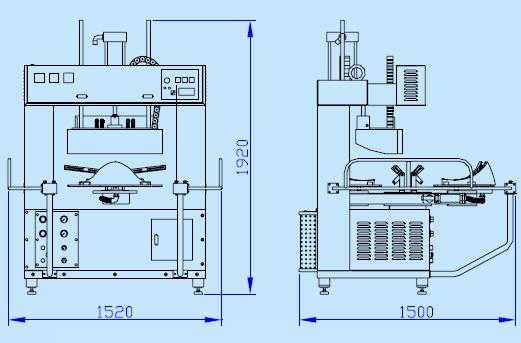

Machine Drawing
