NS-8404-P, Shirt Yoke Press

Automatic Shirt Yoke Press


  • Suitable for yoke fusing and pressing
  • Adopt PLC and human friendly touch screen for operation
  • Totally four pressing modes including slightly pressing, gently pressing, pulse pressing and heavy pressing are available for different fabrics
  • Apply independent digital thermostats for controlling the temperature of upper mould accurately
  • Flexible and adjustable mould for different sized garments
  • Vertical adding pressure mode for a higher efficiency
  • Equipped with fabric clip for easy fabric laying
  • Equipped with independent vacuuming system for fixing, cooling and shaping the garment.

Technical Specifications

Model NS-8404-P
Power Supply 3PH/380V/50Hz
Total Power (kW) 4.3

Heater Power (kW)

Vacuum Pump Power (kW) 1.1
Compressed Air pressure (kgf/cm²) 5
Compressed air consumption (L/min) 100
Machine size (mm) 1140x940x2130

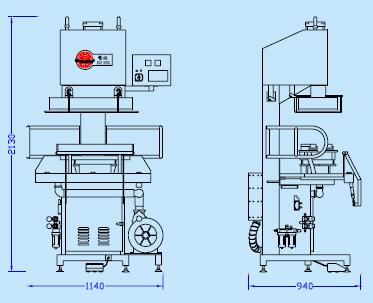

Machine Drawing
