• GERBERspreader 250s

"GERBERspreader 250s is ideal for spreading heavy, large-diameter rolls of material "

Purchase Protection Plan

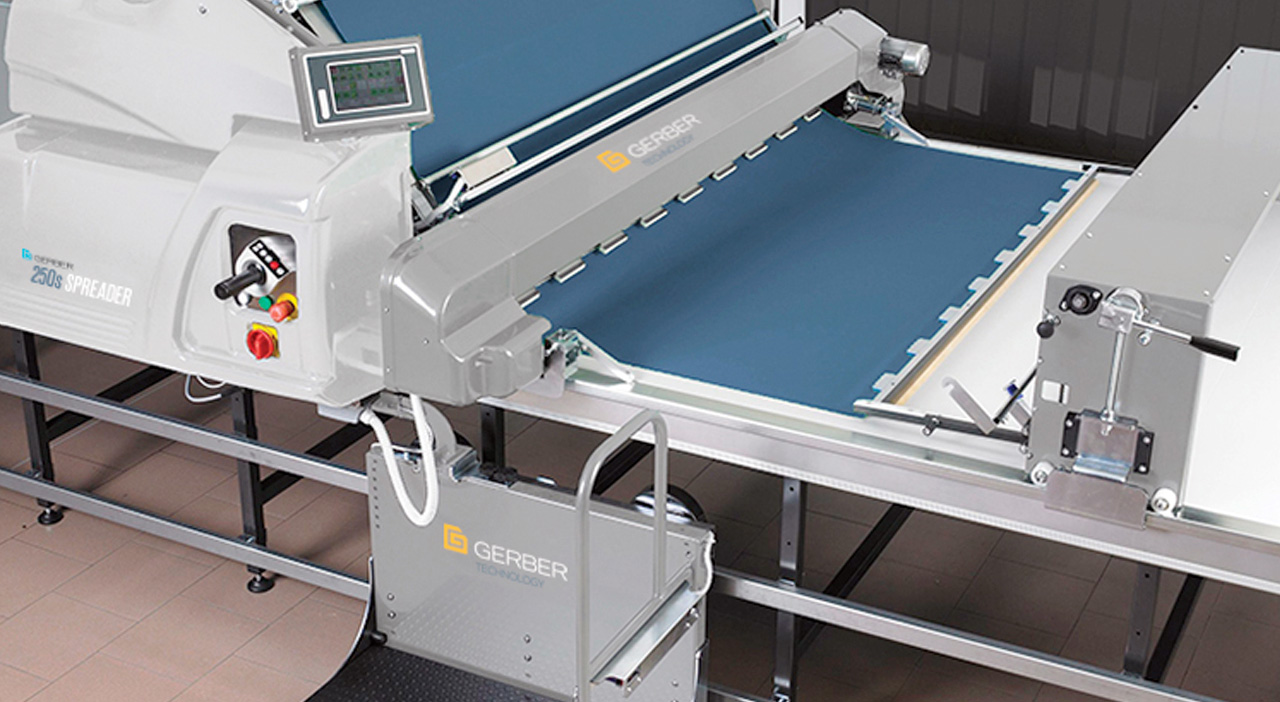

GERBERspreader 250s

A heavy-duty spreading system for apparel production


The GERBERspreader™ 250s helps you go big. It can handle material rolls of up to 250 kg (550 lb). Precision selvage and end alignment technology maximize material utilization, and an intelligent cradle feed system delivers tension-free spreading for the entire lay.


Optimize material utilization

The GERBERspreader 250s is equipped with adjustable infrared photocells to ensure accurate selvage alignment. Precision end alignment technology reduces end loss.

Increase speed and safety

The GERBERspreader 250s spreads material at up to 100 meters per minute. It features an electric cradle tilt for fast, easy loading/unloading and threading/rewinding. An optional loading system ensures safety by lifting heavy rolls.

Choose the system that’s right for you

This spreader is available in widths of 160 cm (63 in), 180 cm (71 in), 200 cm (79 in) and 220 cm (87 in). Fixed or movable end catchers are available, as well as accessories for spreading reverse-wound and flat folded material or spreading material face-to-face.

Go as big as you need to

A large cradle option is available for spreading material from very large rolls – ideal for denim, corduroy and other heavy fabrics used in apparel production.

Technical Specifications

Maximum roll diameter 90 cm* 35.4 in*
Maximum roll weight 250 kg 550 lbs
Spreading height - one way 22 cm 8.66 in
Spreading height - zig-zag 12 cm 4.72 in
Maximum speed per minute 100 m 328 ft
Loading height over table top 600 mm 23.6 in
Total height over table top 1088 mm 42.83 in
Spreader weight 550 kg 1212.5 lbs
Absorbed power 4,2 kWh

Product Review

"want to know the cost of machine"

- kshitija , Industrial engineer

Product Review

"Buenas tardes 1. ¿Cómo se controla la longitud de tendido? 2. ¿Cómo se controla que todas las capas sean iguales? 4. ¿Tienen alguna señal donde se aplique empalme y ayude al siguiente proceso de corte a identificarlo? Quedo al pendiente Gracias"

- Edgar Sagredo, Supervisor de ingenieria
