GERBERcutter DCS 2500

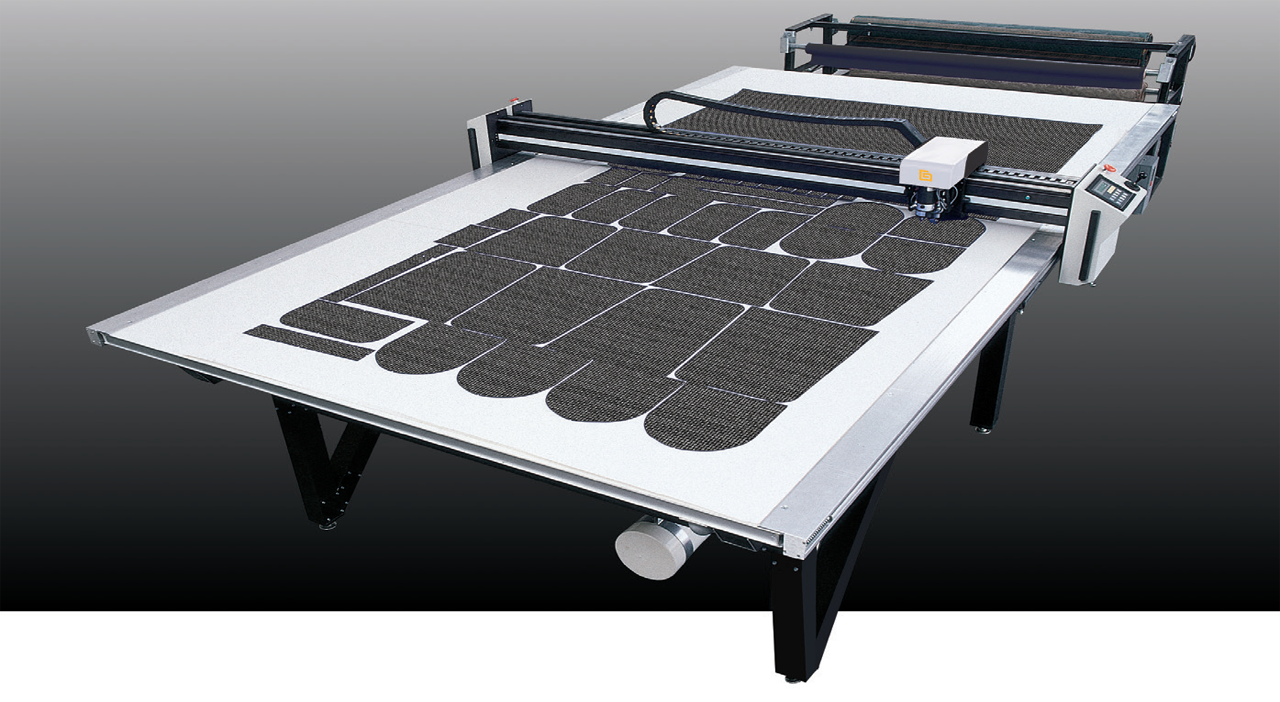

The GERBERcutter® DCS 2500 is a high-speed, single-ply static table cutter designed to cut a wide range of materials. This computer-controlled system is available in various width and length configurations.

Features

Get to work right away

Because the GERBERcutter DCS 2500 is highly intuitive, the transition from manual cutting is easy.

Make every cut count

The DCS 2500 uses a powerful vacuum system to hold material firmly in place during cutting to ensure quality cut parts.

Do it all with one system

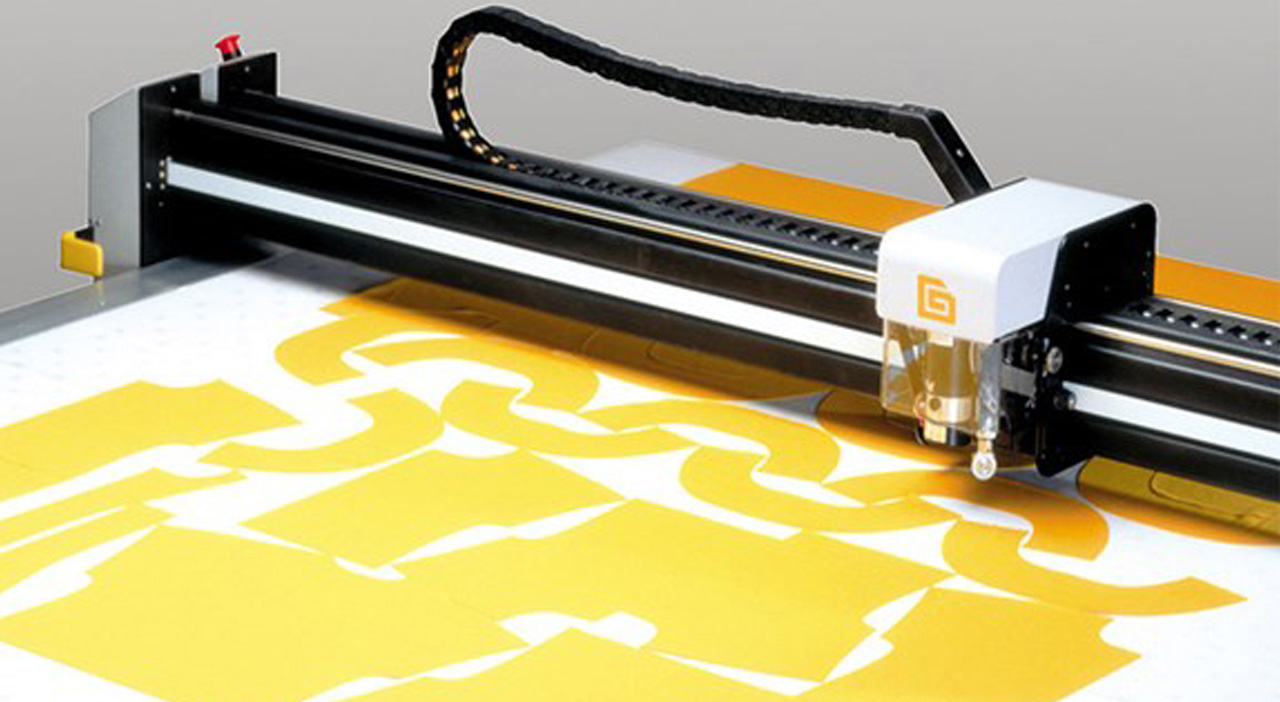

The cutting head is designed to accommodate three tools simultaneously to minimize tool changes. Choose from straight knives, wheel knives, notching tools and punches. Also includes a pen for annotation.

TECHNICAL SPECIFICATION :

Characteristics
Fabric Height   Single Ply
Cutting Speed (max)   1,1 m/sec 45 in/sec
Head Acceleration (max)   0,5G 200 in/sec2
    3,7 - 7,3 - 9,1 - 11 - 12,8 -
    14,6 - 16,5 - 18,3 - 20,1 - 9.2, 21.2, 27.2, 33.2, 39.2,
Machine Dimensions Lengths 21,9 - 23,8 - 25,6 - 27,4 - 45.2, 51.2, 57.2, 63.2, 69.2,
    29,3 - 31,1 - 32,9 - 34,7 - 75.2, 81.2, 87.2, 93.2, 99.2,
    36,6 m 105.2, 111.2, 117.2 ft
  Widths 0,88 - 1,8 - 2,41 - 3,02 - 3,63
- 4,24 m
34.77, 70.77, 94.77, 118.77,
142.77, 166.77 in
Table heights   0,8 or 0,9 m 31.5 or 36 in



Electrical Requirements
Control and Drive System   110V@20 amps, 200V-240V@10 amps, single phase 50/60Hz
(4wire)

Table Vacuum   220-440V, 3-phase, 60 Hz, 10-32 amps
220/380/440V, 3-phase 50 Hz, 80 amps

Compressed Air   14 liters/min @ 5,5-8,3 bar 0.5 SCFM @ 80-120 PSI
Operating Environment
Temperature (maximum)   43ºC 110ºF
Humidity (maximum)   95% (non-condensing)
Vacuum System   760 m above sea level 2,500 ft. above sea level

 Machine Dimensions
Available in 3.7 and 7.3 meter lengths and 1.83 meter increments from 7.3 to 36.6 meters.
Available in 12- and 24-foot lengths and six foot increments from 24 to 120 feet
