"The long distance from the machine arm to the needle contributes to improved workability"

IIGM
Purchase Protection Plan

LU-2800Series

Semi-dry Direct-drive, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook



1-Needle type

LU-2810 (1-needle, Vertical-axis 2.0 Fold-Capacity Hook without automatic thread trimmer)

LU-2810-7 (1-needle, Vertical-axis 2.0 Fold-Capacity Hook with automatic thread trimmer)

LU-2818AL-7 (1-needle, Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (long-pitch type)

LU-2828A-7 (1-needle, Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (needle thread roll-in and shorter - thread remaining type)

2-Needle Type

LU-2860 (2-needle, Vertical-axis 2.0 Fold-Capacity Hook without automatic thread trimmer)

LU-2860-7 (2-needle, Vertical-axis 2.0 Fold-Capacity Hook with automatic thread trimmer)

LU-2868AL-7 (2-needle, Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (long-pitch type))



Features

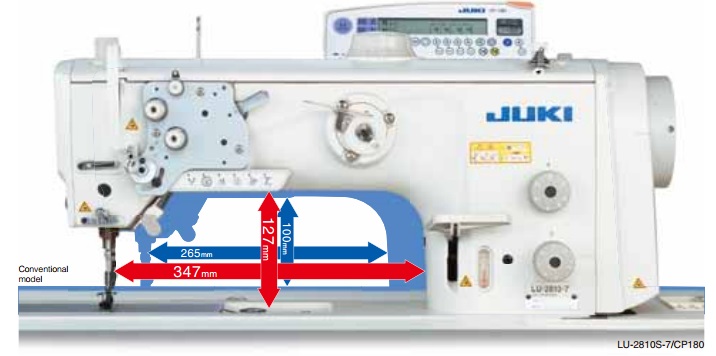

  • The long distance from the machine arm to the needle contributes to improved workability

  • Thread tightness can be kept same, even the multi-level of material
  • Double tension provided as standard
  • Multi-functional 6-string switch(thread trimming switch)
  • Walking-foot/presser-foot alternating vertical movement mechanism
  • A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever
  • Eccentricity of the feed driving cam is adjustable
  • Lubrication system is powerful and stable even low speed
  • New bobbin thread spool device is no neccessity of rolling thread manually
  • Stitch length can be changed over among different lengths
  • 2.0 / 2.7 fold-capacity hook
  • High-torque direct-drive motor is installed.

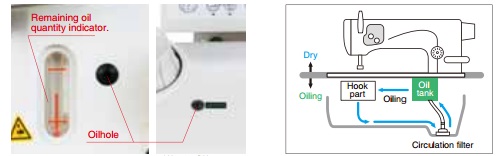

  • Easy to find remaining oil quantity
  • New-type tank style automatic lubrication mechanism has been adopted

Technical Specifications

Model Name LU-2810 LU-2860 LU-2810-7 LU-2860-7
Type 1-needle 2-needle 1-needle with automatic thread trimmer 2-needle with automatic thread trimmer
Max. sewing speed 3000sti/min 2700sti/min 3000sti/min 2700sti/min
Max. stitch length 9mm
Stitch length dial  1 pitch dial    2 pitch dial
Presser foot  Auto: 20mm, By hand: 10mm
Auto lifter  Option   Provide as standard
Alternating vertical movement  1~9mm
Alternating vertical movement adjusting method Large dial
Needle thread tension  Double-tension   Single/Double-tension
Hook  Vertical axis 2 fold-capacity hook
Needle  135×17 Nm160 (Nm125~Nm180)
Thread  #30~#5, B46~B138, Nm=60/3~20/3
Lubrication  Semi-dry head automatic (Tank system)
Hand switch  -   Multi-functional 6-string switch
Power Consumption/Power Requirement    -

  Single-phase 100~120V / 200~240V,

3-phase 200~240V / 180VA

(with automatic thread trimmer)

Machine head weight  56kg   61kg  66kg
Model Name LU-2818AL-7 LU-2868AL-7 LU-2828A-7
Type  1-needle,Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer(Long-pitch type)  2-needle,Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer(Long-pitch type)  1-needle,Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer(Needle thread roll-in and shorter-thread remaining type)
Max. sewing speed  3000sti/min  2700sti/min  3000sti/min
Max. stitch length  12mm   9mm
Stitch length dial    2 pitch dial
Presser foot    Auto :20mm, By hand: 10mm
Auto lifter    Provide as standard
Alternating vertical movement    1~9mm
Needle thread tension  Single/Double tension
Hook    Vertical axis 2.7 fold-capacity hook
Needle  135x17 Nm160(Nm125~Nm180)   134×35 Nm140 (Nm125~Nm180)
Thread  #30~#5, B46~B138, Nm=60/3~20/3
Lubrication Semi-dry head automatic (Tank system)
One-touch type reverse feed switch  Provide as standard
Hand switch  Multi-functional 6-string switch
Power Consumption/Power Requirement  Single-phase 100~120V / 200~240V , 3-phase 200~240V / 180VA
Machine head weight  66kg  68kg  62kg
