DU-1281-7

1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hookand Automatic Thread Trimmer

Features

  • The thread trimmer achieves consistent thread trimming regardless of thickness of the thread, i.e., from thin to thick thread
  • The machine has adopted the rotary thread trimming mechanism which matches, in particular, design stitch with thick thread for furniture and bags
  • The machine achieves a longer distance from machine arm to needle by adopting a high & long arm. This means the machine dramatically increases workability when sewing large products such as sofas and car seats
  • The machine's powerful top & bottom feed demonstrates its performance when sewing car fabric seats
  • The adoption of the horizontal-axis double-capacity hook helps reduce the frequency of bobbin thread replacement, thereby promising sewing work with efficiency

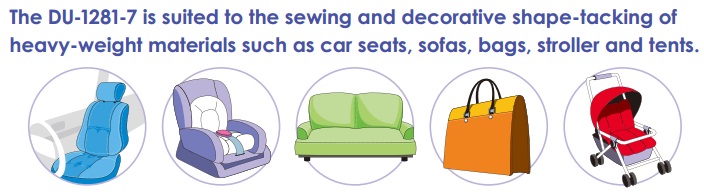

  • Application

Technical Specification

Model Name DU-1281-7
Max. sewing speed  2000sti/min
Stitch Length  2~8mm(forward/backward)
Needle bar stroke  38mm
Lift of the presser foot  By hand: 6mm, By knee: 16mm
Thread take-up  Link Type
Alternating vertical movement  2~5mm
Hook  Horizontal-axis full-rotary double-capacity hook
Needle  DP×17 #22 (#16~#23)
Thread  #30~#8
Pitch changing method By Dial
Lubrication  Automatic
Lubricating oil  MACHINE OIL No.18 (ISO VG18 equivalent)
Distance from needle to machine arm  335mm×150mm
Weight of the machine head  37kg
