"Mounted with inbuilt NFC (Near Field Communication) "

Buy Now

Download Brochure

IIGM

Purchase Protection Plan

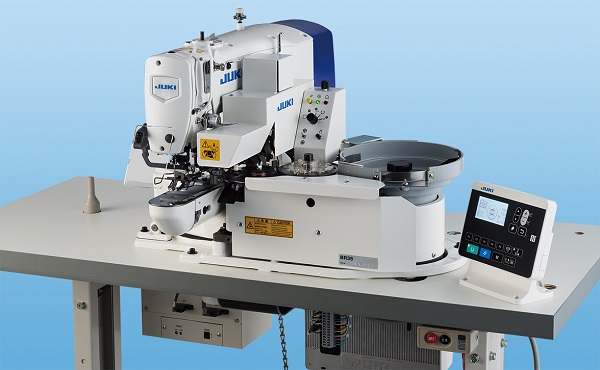

LK-1903BN Series

Computer-controlled, High-speed, Lockstitch, Button Sewing System with the bird's nest preventing / shorter thread remaining functions which eliminates thread nipping work

Features:

Higher productivity.
Excellent seam quality.
Many different sewing patterns.
The sewing starting point can be corrected.
Oil stains are eliminated.
Eco-friendly power saving
Auto-lifter mechanism utilizing a system.
The machine is provided as standard with the active tension.

Technical Specifications:

Model	LK-1903BN Series
Stitch length	0.1-10mm (0.1mm step)
Needle bar stroke	45.7mm
Auto-lifter	Provided as standard (stepping motor type)
Needle thread tension	Active tension (electronic thread tension control system)
Hook	Standard shuttle hook
No.of stitches that can be stores in memory	Max. 20,000 stitches
No.of standard patterns	35 / 50 patterns
Button feed	Horizontal forced button-feed mechanism
Button feed mode	Automatic feed mode, non-feed mode and small-lot sewing mode
Power consumption	250VA / 320VA
