Apparel

"Best for fusing and pressing shirt collar and front placket "

IIGM
Purchase Protection Plan

NS-8934

Automatic Triple-buck Fusing Press

Features

  • Best for fusing and pressing shirt collar and front placket
  • Apply PLC and human friendly machine touch screen for operation, and gently pressing,heavily pressing etc. can be selected
  • The upper mould is made of high quality aluminum alloy, so the heat transferring becomes faster and evener. It has four thermostats for accurate temperature control
  • The lower mould adopts servo motor with rotary  type design to ensure accurate positioning
  • Equipped with 3 moulds rotary design  to apply for pressing,cooling and laying material simultaneously  thus the work efficiency has been improved greatly
  • Water cooling system for perfect pressing result
  • Optimizing design keys on pressure  boosting  of pressure  system which can produce  enough pressure, improve efficiency and quality , operate easy and repair smoothly
  • Equipped with high sensitive electric eye system to ensure the operator’s safety

Technical Specifications

Model NS-8934 NS-8934L
Power Supply 3PH/380V/50Hz 3PH/380V/50Hz
Total Power (kW) 12.8 12.8

Power of Heater (kW)

12 12
Power of water cooling system (kW) 0.75 0.75
Compressed Air pressure (kgf/cm2) 4~6 4~6
Compressed air consumption (L/min) 208 208
Size of working table (mm) 800x400 1000x500
Machine size (mm) 2170x2015x1550 2620x2365x1615

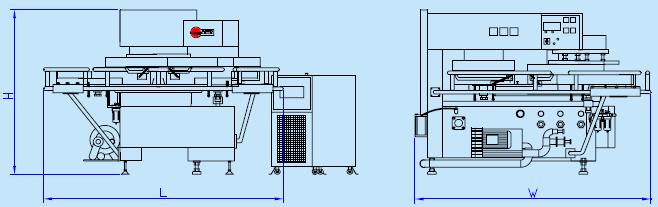

Machine Drawing

Product Review

"PLS SEND ME NS8934L AUTOMATIC TRIPLE - BUCK FUSING PRESS SPRE PARTS BOOK"

- SAMAN, ASSISTANT FAREMAN
