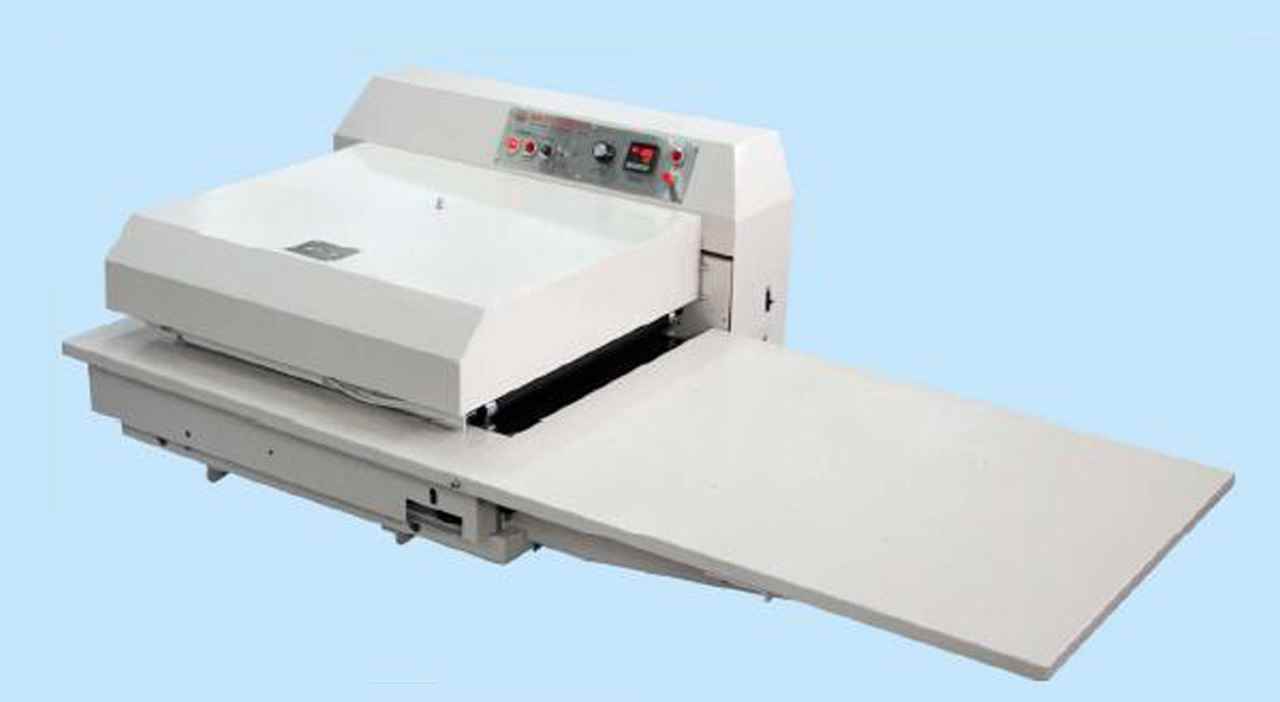

NS-5600-450

Fusing Machine (with Automatic Balancing System)

Features

Design for fusing interlining of waist band, front placket, lady blouse collar and cuff at low temperature and low pressure
Special designed Teflon belt for fast heat transmitting speed
Opening side design enables freely passing of large piece of material
Spring pressure adding system • Working width: 450mm
Maximum design temperature: 200 ℃ • Variable speed control
Continuous rotary belt design, maximizing production and no limit on length to be fused

Technical Specifications

Model	NS-5600-450
Power Supply	1PH/220V/50Hz
Total Power (kW)	4.6
Average adding pressure (kgf/cm2)	0.5
Delivering speed (m/min)	0.7~4.5
Heating time (sec)	4.5~35
Max. Design Temp.(C)	200
Max. Fusing width (mm)	450
Net weight (kg)	152
Machine size (mm)	2225x880x505
Packing size (mm)	970x970x570
