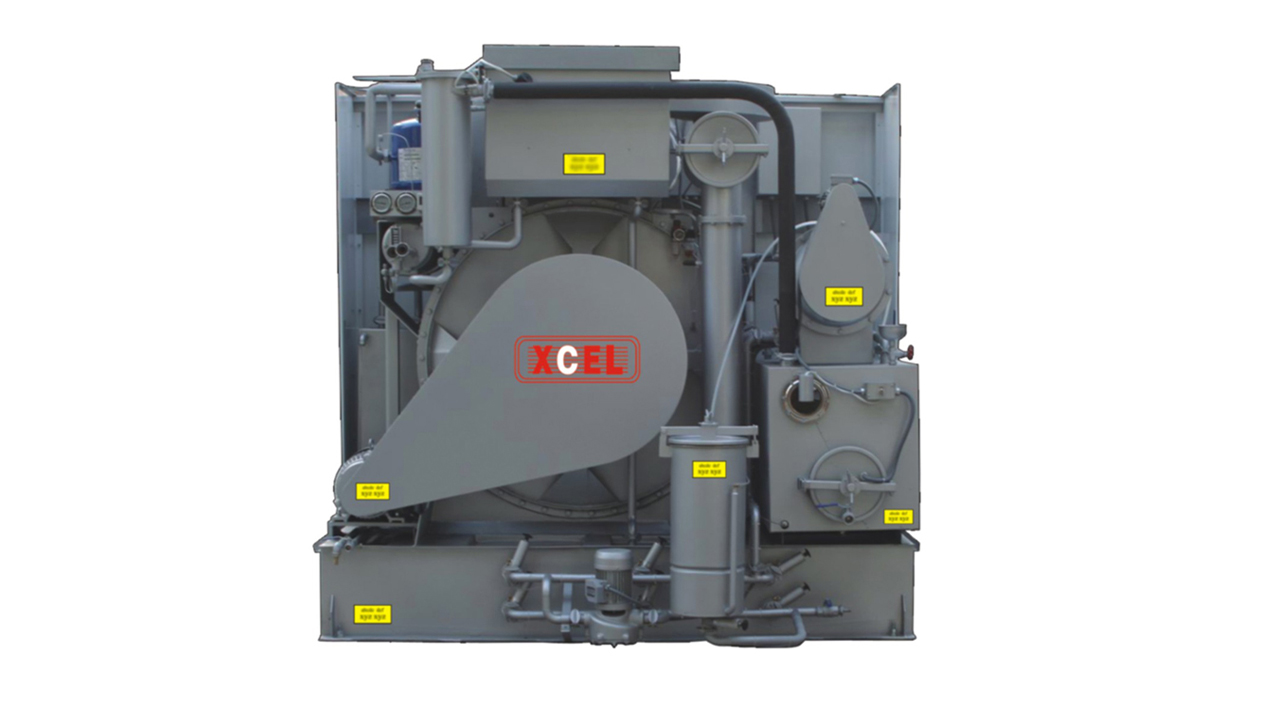

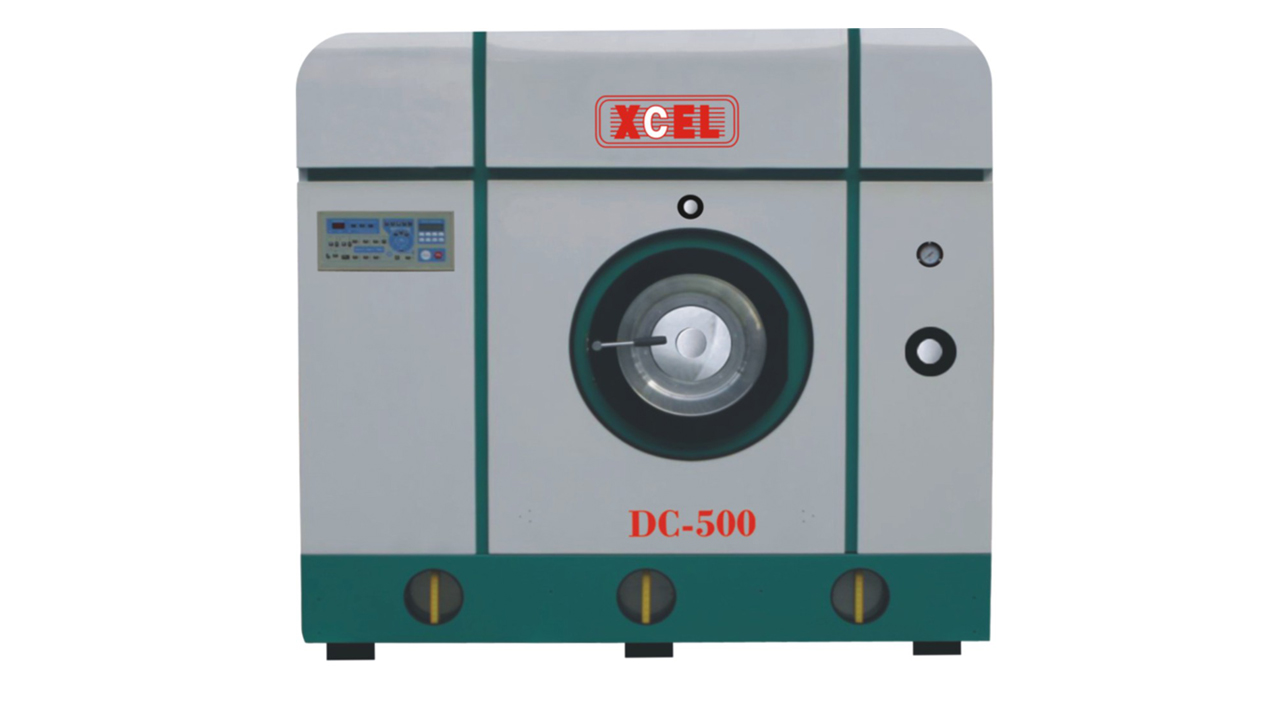

DC 500, Perc Drycleaning Machine

DC-200/300/500/700, Percdry Clean is a Water / Oil based recovery unit which reduces power consumption by upto 20%.

Advantages:

  • Variable speed control, for delicate fabrics & attachments.

  • Rapid drying process ensures shorter cycle duration.

  • Upgraded filtration process to eliminate perc smell Completely.

  • Built in electrical panel to protect overloading, best suited for Indian conditions.

  • High Productivity, minimum Solvent consumption

  • Highly advanced computer system.

  • The basket is mounted on hub, completely sate against un-balancing even at higher loads.

Features:

  • Size -10 / 15 / 25 / 35 kgs.

  • 3 - storage tanks.

  • Tank to Tank Perc automatic transfer

  • Nylon ecological filters.

  • Microprocessor Computer with 20 program memory, manual override, self diagnostic.

  • Exhaust door vent fan.

  • Closed cycle operation.

  • Electric or steam heated

  • Batch distillation

  • Large loading and still door

  • Large button trap

  • Automatic drying system

  • Soap container

  • Large refrigeration compressor

  • Double air filter

  • Emission free solvent filling

  • Parts made of stainless steel basket, cage, recover section, button trap body, filter, still condenser, water separator, drying unit & solvent tanks.

    Options:

  • Solvent cooling in the tanks

  • Soap pump

  • Water saving valve

  • Second Nylon Eco filter

  • Air Compressor

  • Cooling Tower

Technical Specifications:

Model DC 200 DC 300 DC 500 DC 700
Drum Capacity kg 10 15 25 35
Drum Volume lt 200 286 503 675
Drum Diameter mm 800 900 1100 1250
Drum Depth mm 400 450 530 550
Drum Wash Speed rpm 26 26 26 26
Drum Extract Speed rpm 370 370 370 370
Drum Door Dia mm 400 400 485 485
Tank 1,2,3 lt 102 133 190 240
Distillator lt 155 175 255 280
Nylon filter dia-mm 330 330 330 330
Wash / Extract motor kw 2.25 2.25 3.75 5.56
Pump kw 0.75 0.75 0.75 0.75
Fan motor kw 1.5 1.5 1.5 1.5
Refrigerator ton 03 03 05 05
Drying heater kw 6 6 6 6
Still heater kw 8 8 12 12
Weight kg 950 1280 1650 1985
Dimension mm 1560x1300x2050 1810x1350x2150 2260x1550x2280 2460x1600x2530
