"Direct-drive, High-speed, 1-Needle, Lockstitch, Zigzag Stitching Machine "

IIGM
Purchase Protection Plan

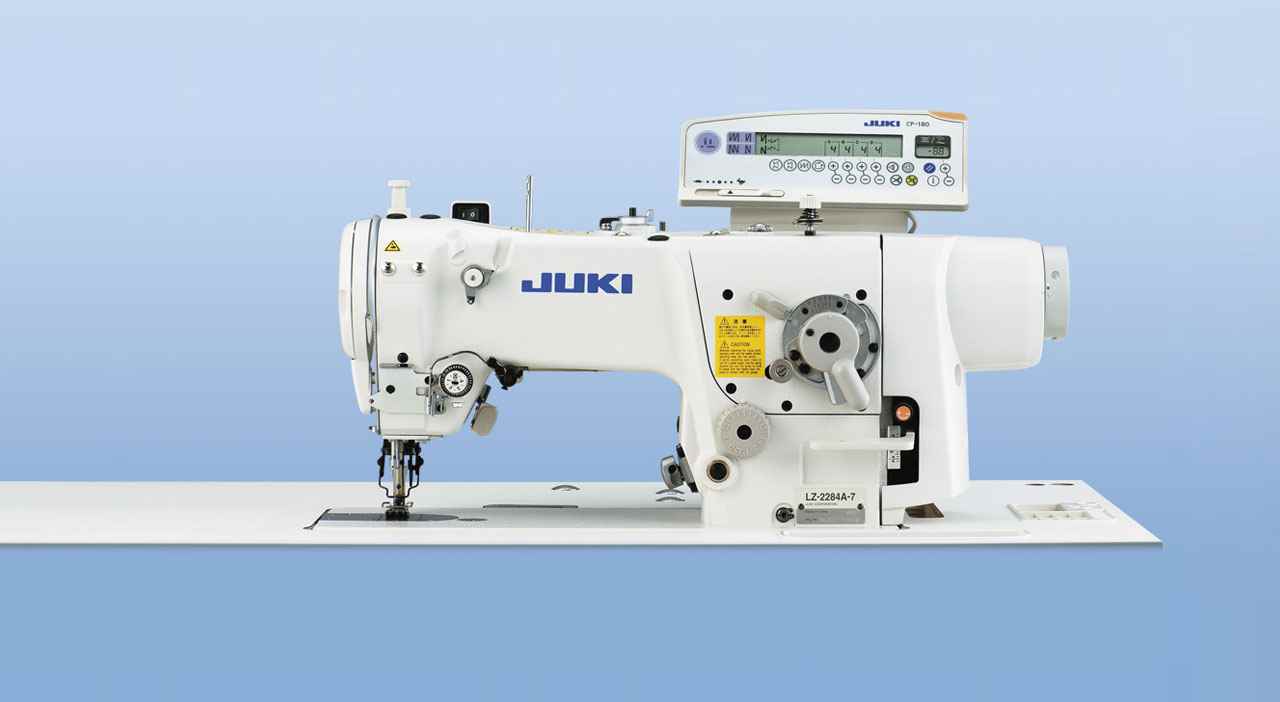

LZ-2280A Series

The machine has adopted JUKI’s established genuine hook and thread take-up lever.

Features

  • Presser adjustment screw and scale line
  • Screw for the attachment is provided as standard
  • Bobbin thread winder
  • Micro-lifter
  • Silent and low-vibration operation
  • Easy-to-operate adjustment mechanism
  • The lift of the presser foot has been increased and the LED has been provided as standard
  • Automatic reverse feed function

Technical Specification

 Technical Specification - LZ-2280A Series
Stitch system Standard / 3-step zigzag
Max. sewing speed 5,000 sti/min
Max. zigzag width 5 mm (standard) 10 mm (3-step)
Max. feeding amount 2.5 mm
Lift of the presser foot By hand: 5.5 mm, By knee: 10 mm
Thread take-up Rotary type
Lubrication Fully automatic
Needle position changing mechanism Provided as standard
Reverse feed stitching mechanism Provided as standard

Warranty

One year from the date of invoice against any manufacturing defects.
