DFB/BX Series

DFB, BX series are a flatbed, multi needles, double chain stitch machine

SERIES

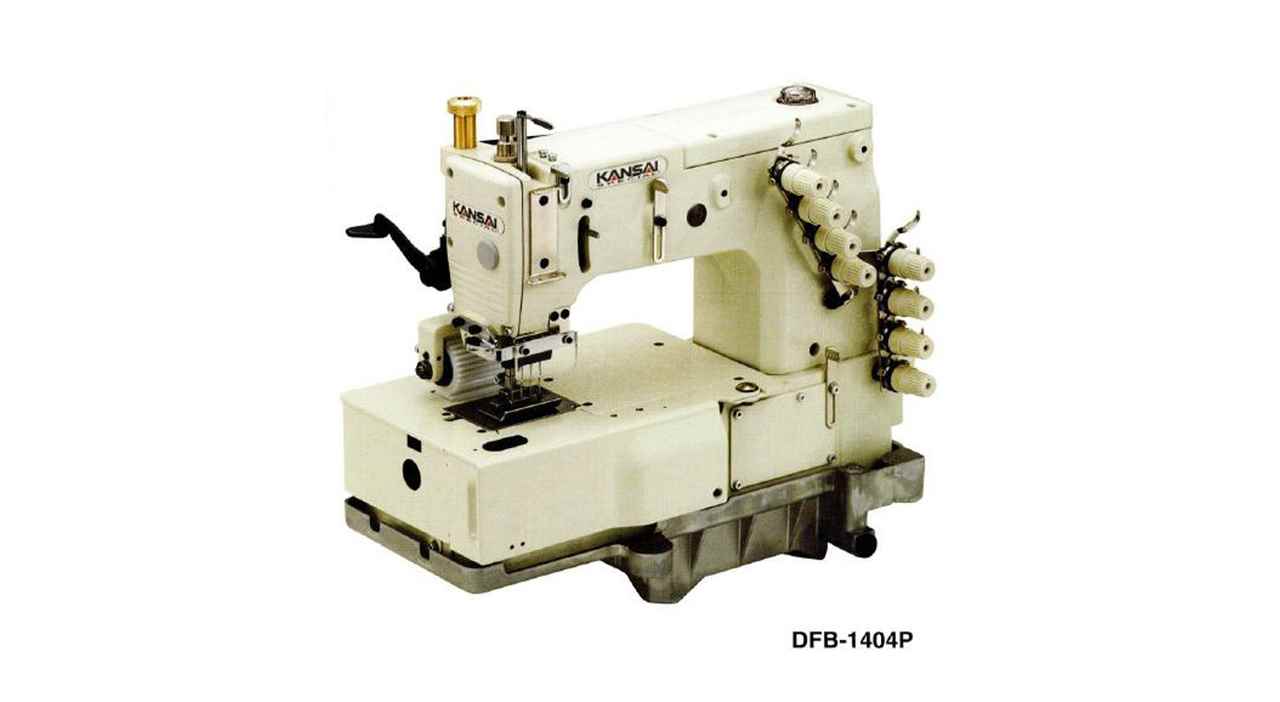

  • DFB-1404P

Multi needles, double chain stitch machine

  • DFB-1404PMD

4 needle. flat bed, double chain stitch machine for attaching elastic, the most suitable for attaching elastic to trunks and similar garment.

  • DFB-1404PSF

4 needle, flat bed, multi-functional machine with smooth puller for shirt fronting.

  • DFB-1403PSM-H

3 needle, flat bed machine with 6 different smocking cams. Suitable for heavy material.

  • DFB-1412P

12 needle, flat bed, double chain stitch machine with wide range of gauge sizes. Total needle space up to 70mm.

  • DFB-1412PSM

12 needle, flat bed, double chain stitch machine with 9 different smocking cams.

  • DFB-1412PS-ET

12 needle, flat bed, double chain stitch machine for shirring with elastic thread use in the loopers.

  • DFB-1412PQ

12 needle, flatbed, double chain stitch machine for simultaneous shirring. Both needle and looper threads are standard (spun), and elastic thread is sewn with looper thread together.

  • DFB-1412PL

12 needle, flatbed, double chain stitch machine for attaching line tapes.

  • DFB-1412PTV

12 needle, flatbed, double chain stitch machine with pin tucking. The width of pin tucking can be changed to 2, 5 and 8mm by changing the nail blades.

  • BX-1433PS-SM

33 needle, flatbed, double chain stitch machine for simultaneous shirring and smocking with 9 different cams for various designs.

  • BX-1033PSM

33 needle, flatbed, single chain stitch machine for simultaneous shirring and smocking. Needle (upper) thread: Elastic. No looper (lower) thread.

Features

  • These series are multi-purpose machines for attaching elastic, attaching waistband, sewing the front of shirts, attaching line tapes,smocking and shirring etc.
  • There are 2 up to 33 needles available due to vertical movement of the looper and also many kinds of gauges which are selectable according to your needs.

Subclass

  • MR :Machine with Rufflingto Device
  • WB : Machine for Attaching Waistbands
  • PSF : Machine for shirt fronting
  • PSM   Machine for smocking
  • PS-SM :Machine for simultaneous shirring + smocking
  • ET : Looper thread elastic modelUPS-ET :Machine with Shirring ( Needle : Polyester Thread, Looper : Elastic Thread)
  • PQ : Machine with Shirring (Needle : Polyester Thread, Looper : Polyester Thread, Elastic Thread: threading on surface of needle plate.)
  • PL : Machine for Attaching Line Tapes. Option
  • MD-1 : Metering Device

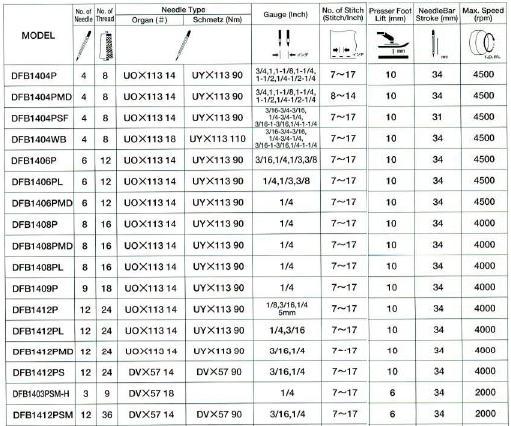

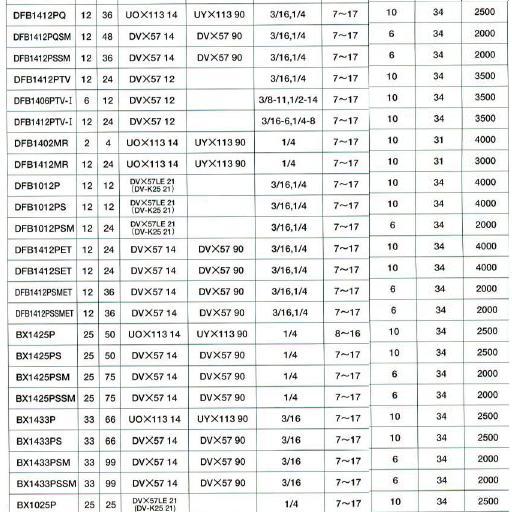

Technical Specifications
