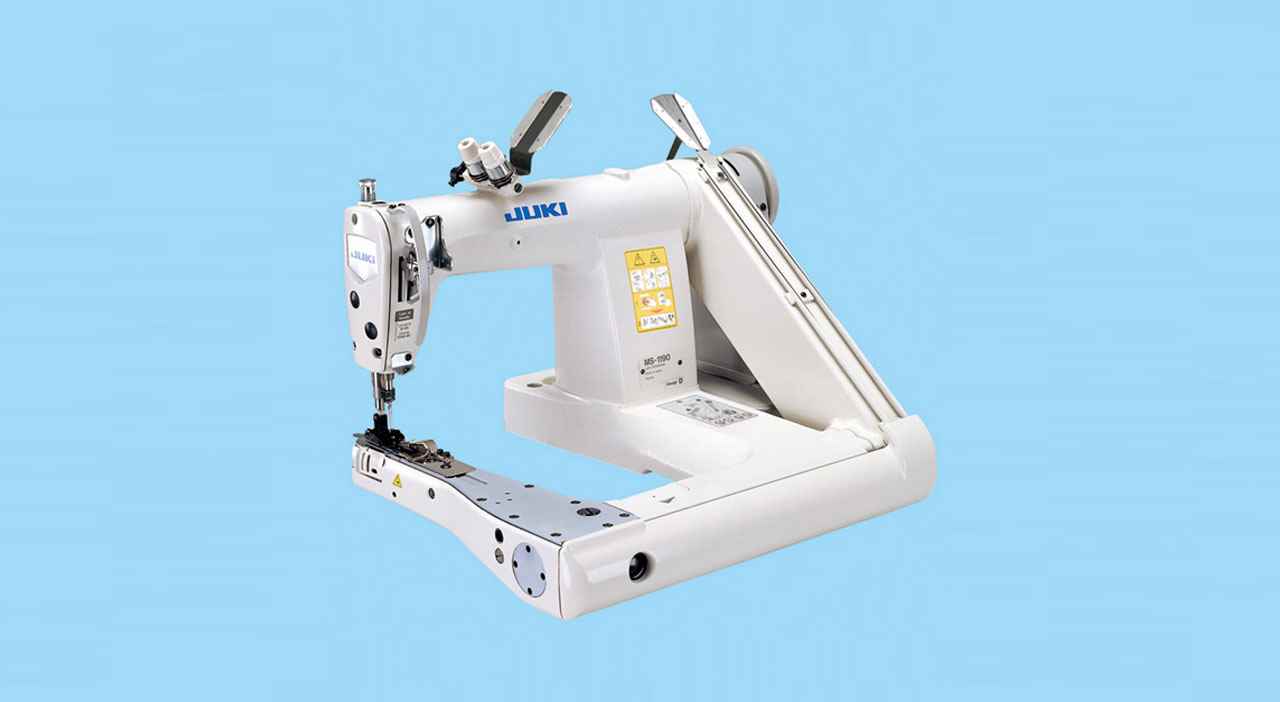

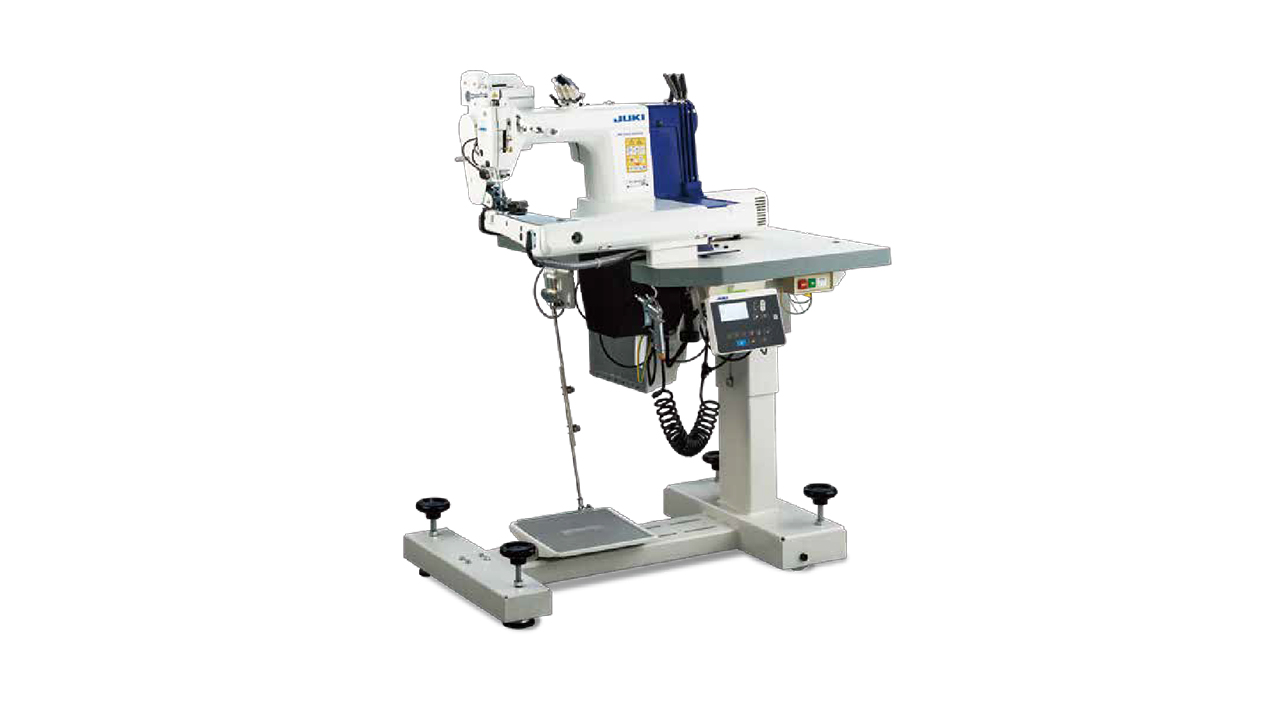

"Feed-off-the-arm, Double Chainstitch Machine "

Buy Now

Download Brochure

IIGM

Purchase Protection Plan

MS-1190

Achieves beautifully-finished seam while preventing puckering and stitch skipping

Features

The machine achieves beautifully-finished seam while preventing puckering and stitch skipping
Needle thread path for promising consistent sewing performance
The needle clamp is equipped with a thread guide, thereby preventing puckering
Many different types of improved gauge sets have been prepared. The operator can choose the one best-suited for the type of materials to be used
Folders indirectly support the production of high-quality products
The shape of the bed has been designed for easier handling

Technical Specifications

No. of needle	2
Max. sewing speed	4,000 sti/min (normal 3,500sti/min)
Stitch length	1.2~3.2mm
Lift of the presser foot	10mm
Circumference of tube at the needle entry	171mm
Stitch adjusting system	By push-button (with locking mechanism)
Lubrication	Semi-automatic lubrication
