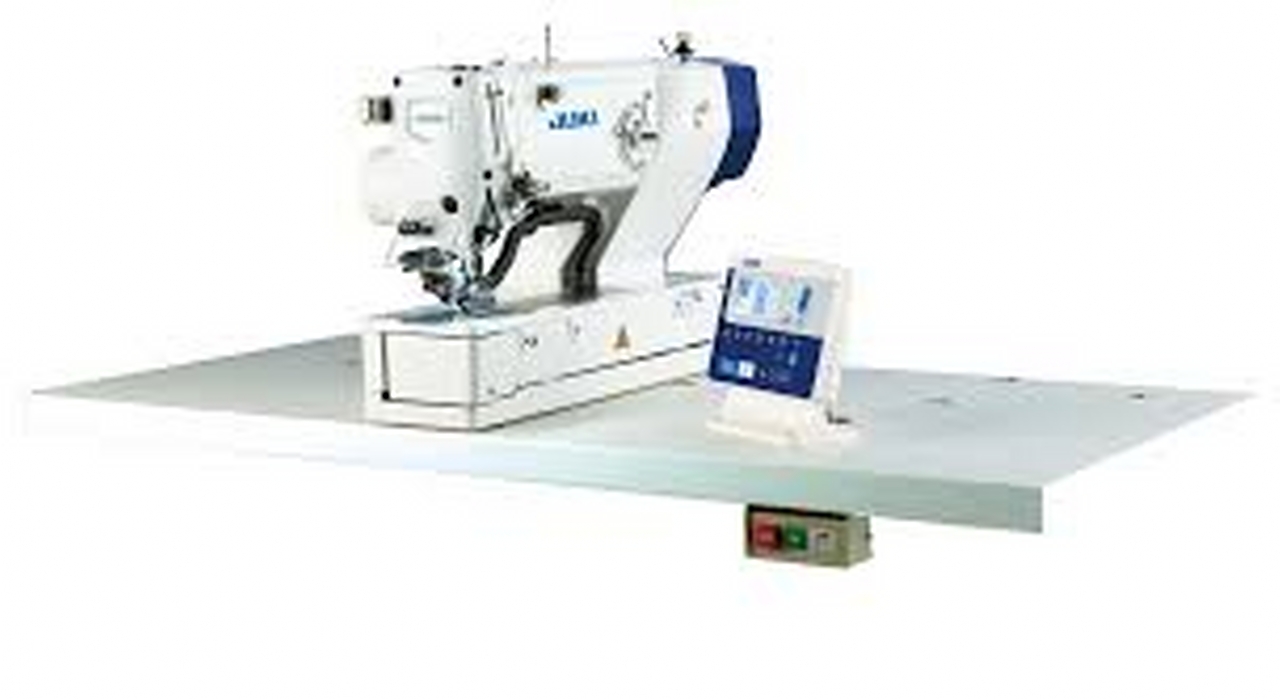

LBH-1790S

Computer-Controlled, High-Speed, Buttonholing Machine

Juki Simple series sewing machine LBH-1790S has been designed to have simplified and narrowed down

capabilities that are essentially required to produce JUKI's established seam quality.

In addition, it supports the operator with the voice guidance system to improve work efficiency.

Features

  • Higher Productivity
  • Multiple-times knife dropping
  • Easy changeover of sewing settings
  • Basting stitch on elastic materials
  • Main functions driven electrically
  • Active tension ( electronic thread tension control mechanism)
  • Standard operation panel ( new model)
  • Voice guidance for the operator

Technical Specifications

Model LBH-1790SS
Application Standard
Lubrication Semi-dry head (Hook: minute-quantity lubrication)
Max.sewing speed 4,200spm( at the time of delivery : 3,600 spm)
size of cloth cutting knife 6.4-31.8 mm (1/4"-1-1/4")
Buttonhole Length Max. 41 mm
Needle thread tension Active tension (solenoid)
Needle ( at the time of delivery) DPx5 ( #11J) # 11J-#14J
Lift of the work clamp 14mm (17mm when the reverse-rotation needle-up function is used)
Auto-lifter Provided as standard ( stepping motor type)
Number of std patterns  31 patterns
No of Patterns that can be Input   Max. 99 Patterns
Machine head drive system Compact AC servomotor ( direct-drive system)

Power requriement/

Power consumption

single-phase 200-240V/370VA
Weight Machine head ( include motor) 55kg,Control box 5.5 kg



Warranty

1 year from the date of Invoice
