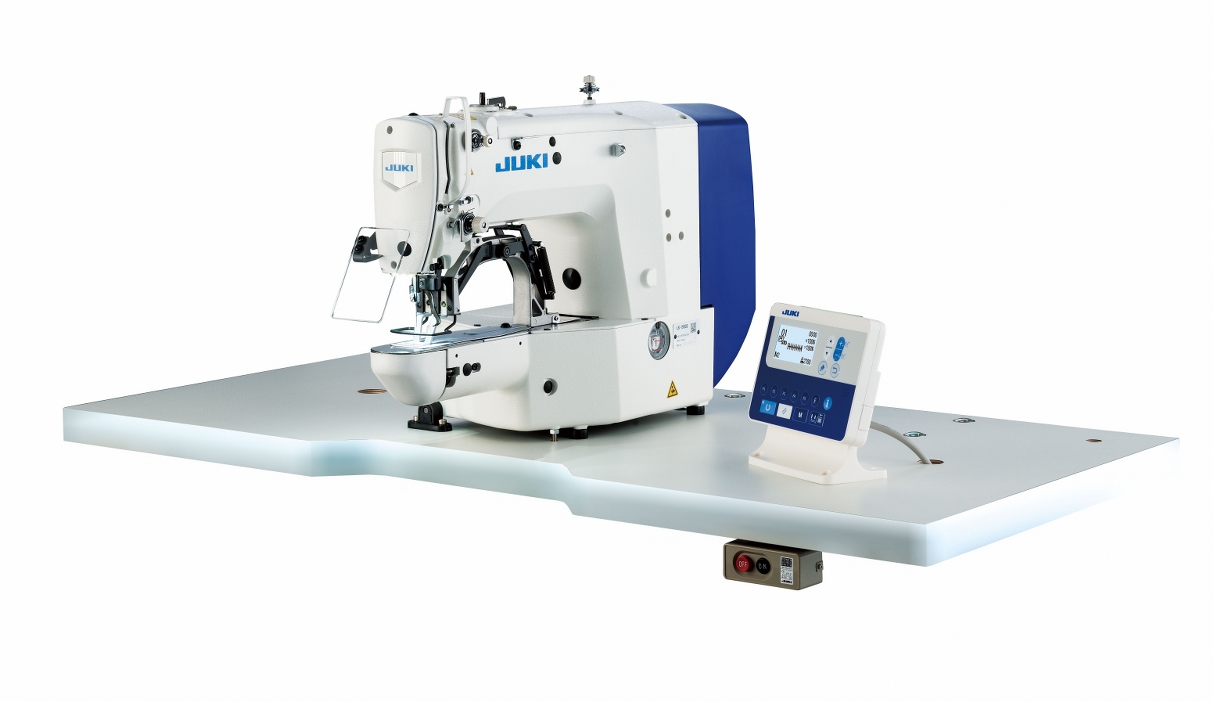

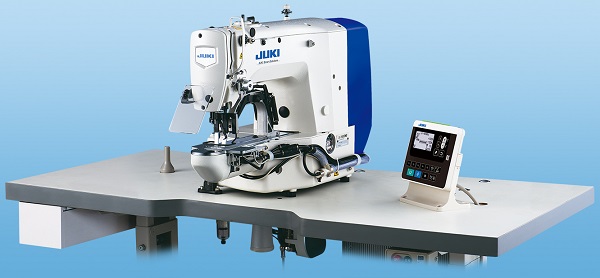

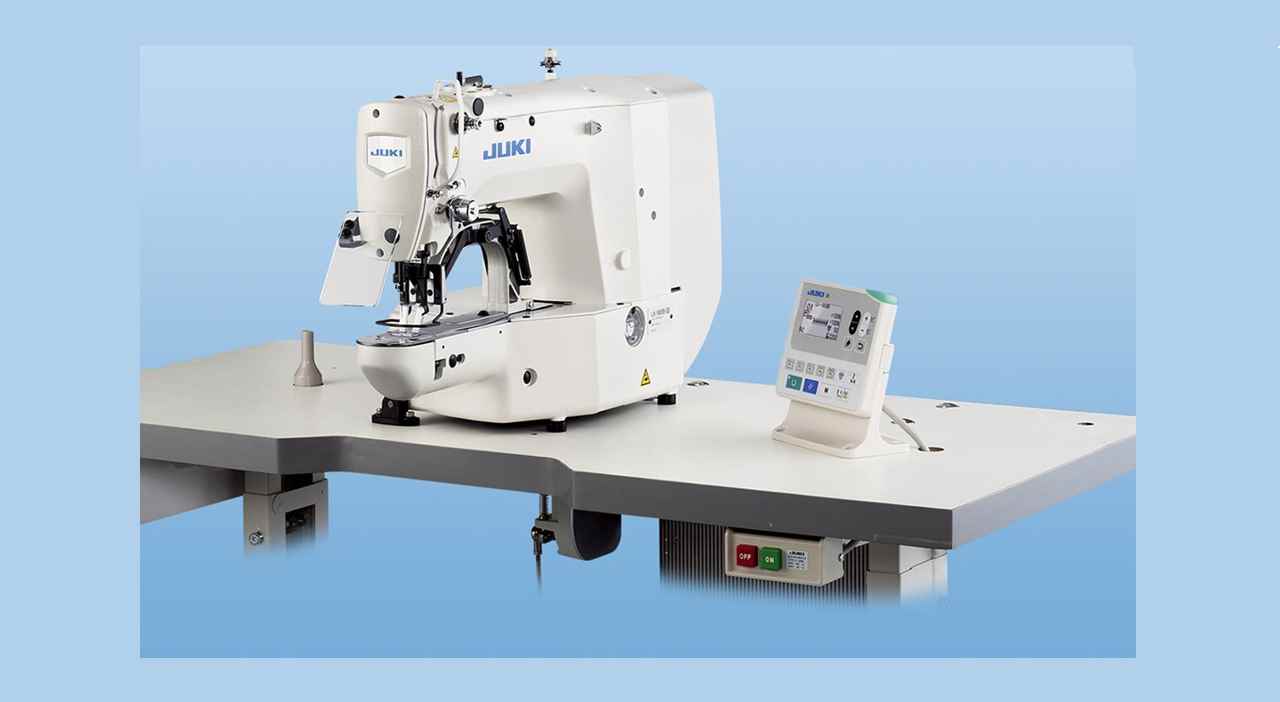

"Computer-controlled, High-speed, Bartacking Machine "

IIGM
Purchase Protection Plan

LK-1900B Series

Higher productivity, Low-noise and low-vibration

Features

  • Higher productivity
  • Excellent workability and operability
  • Excellent seam quality
  • Many different sewing patterns
  • The sewing starting point can be corrected
  • Oil stains are eliminated
  • Eco-friendly power saving
  • The machine is provided as standard with the active tension
  • Standard liquid crystal panel (new)

Technical Specifications

 Technical Specifications - LK-1900B Series
Max. sewing speed 3,200spm
Sewing area 30mm (L) x 40mm (W)
Stitch length 0.1~10mm (0.1mm step)
Needle bar stroke 41.2mm
Lift of the work clamp foot Standard 14mm (17mm when the reverse-rotation needle-up function)
Auto-lifter Provided as standard (stepping motor type)
Needle thread tension Active tension (electronic thread tension control system)
Number of stitches that can be stored in memory Max. 20,000 stitches
Number of standard patterns 51 patterns
Number of data that can be input 200 patterns (for up to 150 patterns, sewing data can be added.)
Bobbin thread counter Provided as standard (up/down method)

Warranty

One year from the date of invoice against any manufacturing defects
