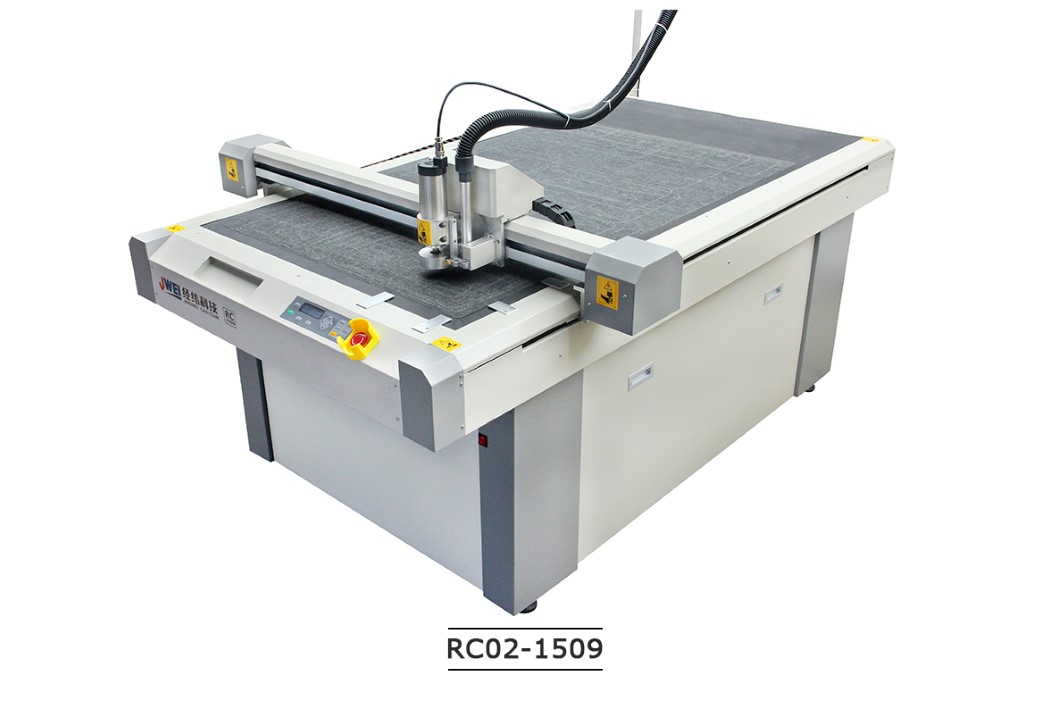

"JWEI RC02 Apparel PVC Proofing Cutting Plotter "

IIGM
Purchase Protection Plan

JWEI RC02

First Choice of Apparel Proofing Cutting

  • Multi-doiameter routers, could be quickly changed to adapt different materials;
  • Single machine with Multi-functions, could be used to make templates and also cut patterns;
  • Vacuum suction;
  • Strong compatibility, could be connected to any kind of apparel CAD software;
  • Cut by knife tool instead of laser, more environmental protection, no harm to human body;
  • Provide a full automatic solution for apparel industry. Reduce cost.

Features:

1. TOOLS Pen : write some important mark Blade : help you cut clothing model

Milling cutter : professional cutter, cut smoothly, not rubbed again.

Dirt catcher : cut along with clearing sweeps, keep your table clear

2. Multi-sectors Vacuum Table Vacuum Table in structure is made of five suction sectors, which you can conveniently operate on Touch screen Menu, to turn on/off suction of selected sectors. By this function, suction can be gathered to the specified table area where materials are placed, for where no material, there''s no suction, and therefore offfers more satisfactory suction performance.



Technical Spec:

Model No.

RC02-1509

Characteristics

Be connected to any kind of apparel CAD software.Working with computer synchronously, transmit speedily

Cutting method

Multi-diameter router(Replaceable)special tungsten carbide blade, plotting

Knife handle diameter

3.175mm/4mm/6mm

Max.cutting speed

500mm/s(depends on the kinds of material)

Cutting material

PVC board, Acrylic board, Density board, Plastic board etc. Kraft paper, Ivory board, Sulphite paper.

Cutting thickness

≤4mm

Working accuracy

+/-0.05mm

Repeated accuracy

+/-0.05mm

Main axis frequency motor

800W

Max.Spindle speed

24000(r/min)

Fixing method

Vacuum suction

Command

HP-GL compatible format

Numerical control panel

Chinese-English LCD touch screen

Transmission system

Stepper motor driver high precise straight rail synchronous belt

Interface

Ethernet port

Power supply

AC220V±10% 50HZ/ AC380V±10% 50HZ

Fuse

10A,30A

Effective Cutting Area

1500mm*900 mm

Machine size

2220mm*1520mm*1300mm
