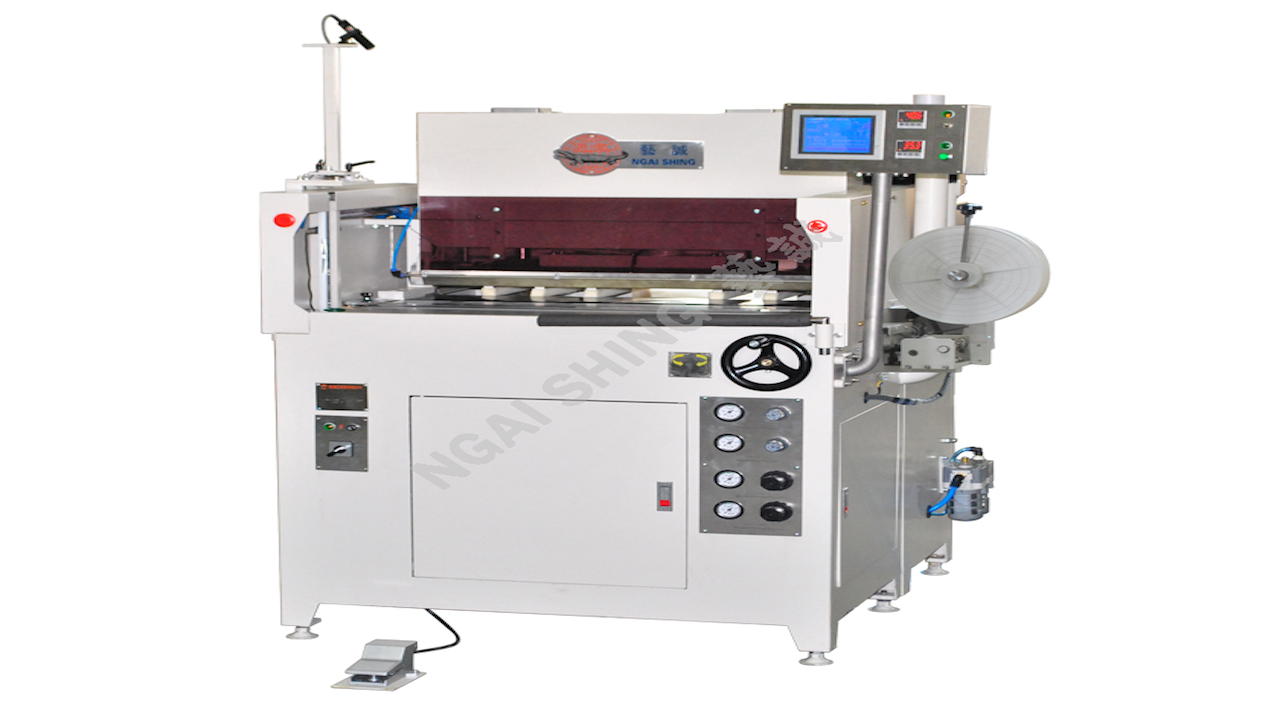

Front Placket Folding NS-5502

Specially designed for folding & pressing checks & striped front plackets with laser light for check and stripe matching.


  • It is suitable for folding and pressing shirt front placket, especially for check and stripe fabric pieces
  • The automatic lining cutting device is available for purchasing, in order to fold and shape the front placket in one operation, which greatly simplifies garment making procedure and improves the productive efficiency
  • PLC and human- machine touch screen control
  • Laser light assists check matching, convenient for check and stripe matching
  • Automatically fabric piece collecting and stacking, tidy and clean, with less crinkles and excellent folding effect
  • Built-in silencer for less noise
  • With high sensitive electric eye sensing system, the operation safety has been improved greatly
  • Output of shirt front placket folding and pressing:

              Plain colored pieces: about 260pcs/hr

              Check or stripe pieces: about 180pcs/hr

Technical Specifications

Technical Specifications - NS-5502
Power Supply 3PH/380V/50Hz
Total Power (kW) 8.5
Compressed Air Pressure (kgf/cm²) 4~6
Compressed Air Consumption (L/min) 200
Spec. of Shirt Front Placket to be Folded (mm)

Max. length: 820


Net Weight (kg) 500
Machine Size (mm) 1390x1370x1840
