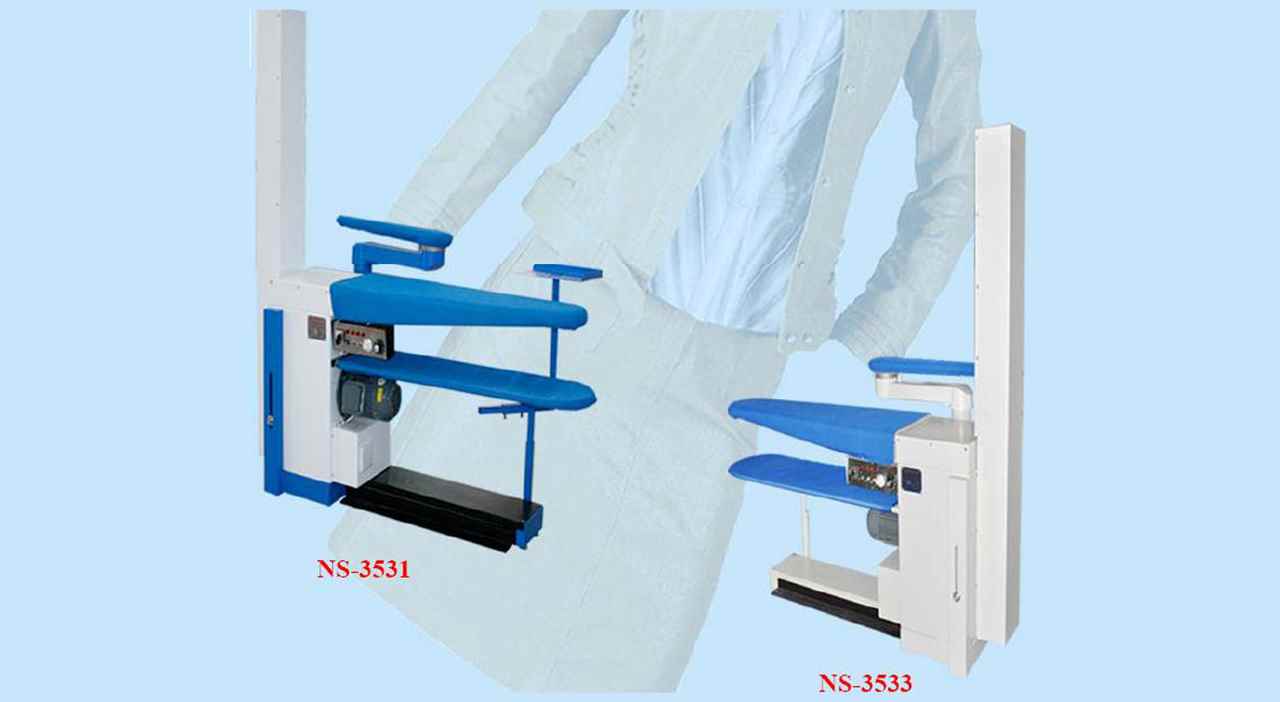

NS-3531, Vacuum Ironing Table

Vacuum Ironing Table with Single Buck

Features

Suitable for lady blouse and intermediate ironing
Easy and facility operation , small occupation area, adjustable table height etc
High quality fan for strong vacuum ,fast start and stop speed
Heat resistance ironing cloth and spongy foam
Combination structure for easy transportation and installation
Table top and buck with heater could reduce water accumulation

Technical Specifications

Model	NS-3531, NS-3533
Power Supply	3PH/380V/50Hz
Motor (HP)	1
Table top heater (kW)	0.6
Ironing arm heater (kW)	0.2
Weight (kg)	170
Machine size (mm)	1530x530x1640

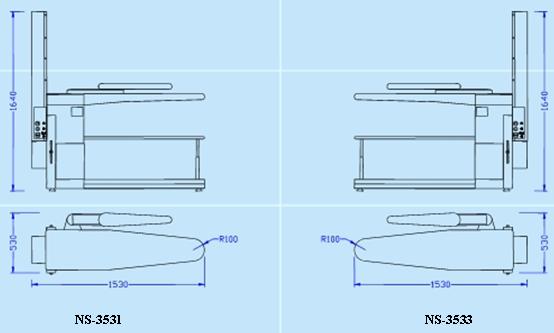

Machine Drawing
