"Strong machine body "

Purchase Protection Plan

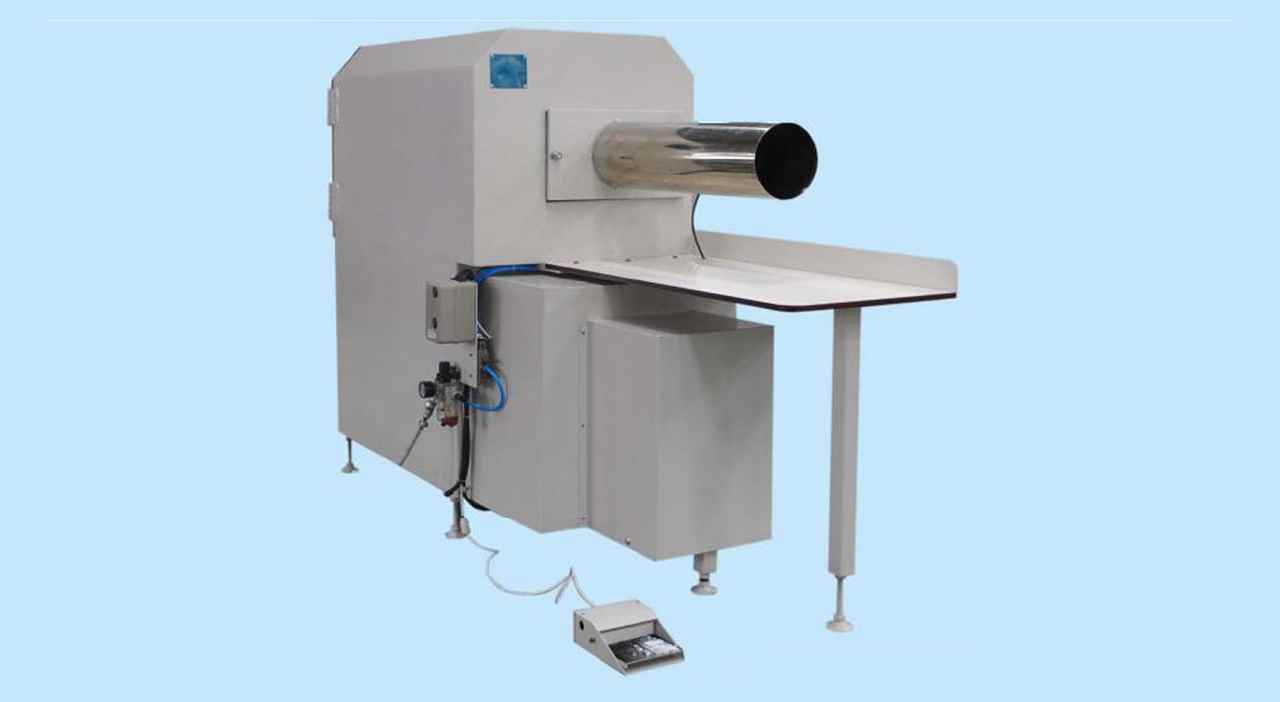

NS-710, Trouser Reversing Machine

Reversing Trousers Machine


  • Suitable for reversing trousers of different fabrics, also suitable for reversing sleeve and pillowcase
  • Pneumatic damper control
  • The built-in dust proof net could separate threads and some dust so as to prolong vacuum pump’s service life
  • Adopt high quality vacuum pump, powerful wind , fast reversing speed, high efficiency; production can reach 400-500 pcs per hour
  • Strong machine body
  • Easy to operate and maintain


  • APT05-04543 Single legger
  • O-G-01-1 Double legger

Technical Specifications

Model NS-710
Power Supply 3PH/380V/50Hz
Total Power (kW) 3.2
Vacuum Pump Motor (kW) 3
Compressed Air Pressure (kgf/cm²) 5
Consumption Air Consumption (L/min) 60
Max. Sucking force (mmHg) 75
Noise (dB) 85
Spec. of Trousers Reversing Tube (mm) Ø160
Machine size (mm) 1830x840x1300

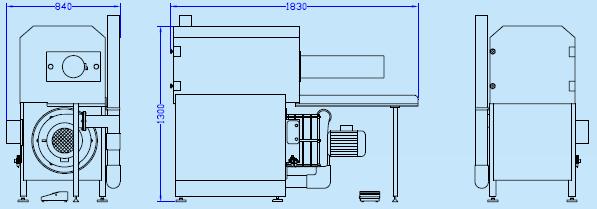

Machine Drawing
