"Compact Infrared Conveyor Dryer Handles Wide Jackets "

IIGM
Purchase Protection Plan

D-1000

With a 26 in. (66 cm) wide by 46 in. (116.8 cm) long conveyor belt, the D-1000 Compact Infrared Conveyor is sized to accommodate wider jackets and sweats, and wider printed images, than a Vastex sub-compact D-100 Conveyor Dryer with 18 in. (46 cm) wide belt. An available 10 in. (25.4 cm) front conveyor extension increases the standard infeed of 15 in. (38.1 cm) to 25 in. (63.5 cm) for loading of heavier and larger garments


At 46 in. (116.8 cm) long and 32 in. (81.3 cm) wide overall, the unit fits on tabletops or on utility carts with tops as small as 30 in. (76.2 cm) square, and is available with an optional S-100 mobile stand shown at right. It is also suitable for mobile screen printers to power on site using a small
generator at fairs, concerts, trade shows and other events where larger garments as well as tees may be screen printed.

It is available in 120V or 240V models equipped with a 20 in. (50.8 cm) wide by 16 in. (40.6 cm) long, 2050 watt heater that carries the same 15-year warranty as all Vastex infrared heaters.

Variable controls for both heat intensity and conveyor speed allow fine-tuning of the drying process according to ink type, ink coverage, desired cure temperature, and rate at which items are being printed.

The heater can be raised, lowered and pivoted using lock knobs on the sides of the heating chamber according to the thickness of printed garments and/or the angle of printed images on irregularly shaped items, for uniform curing of the printed area using minimum energy. Heater shields are included as standard to maximize edge-to-edge temperature consistency for increased image quality.


Features

SMART 26" (66 cm) wide Teflon coated fiberglass belt with tracking system
ADJUSTABLE Speed, temperature, heater height and tilt
FAST 110+* shirts per hour with plastisol and 50+* with discharge
PRECISE Powerful infrared heater with tight coil pattern and heat shields
VALUABLE Best warranty, high quality, exceptional service

COMPACT Total footprint is about 10 sq.ft
(3 sq.m)
OPTIONAL 10" front conveyor extension

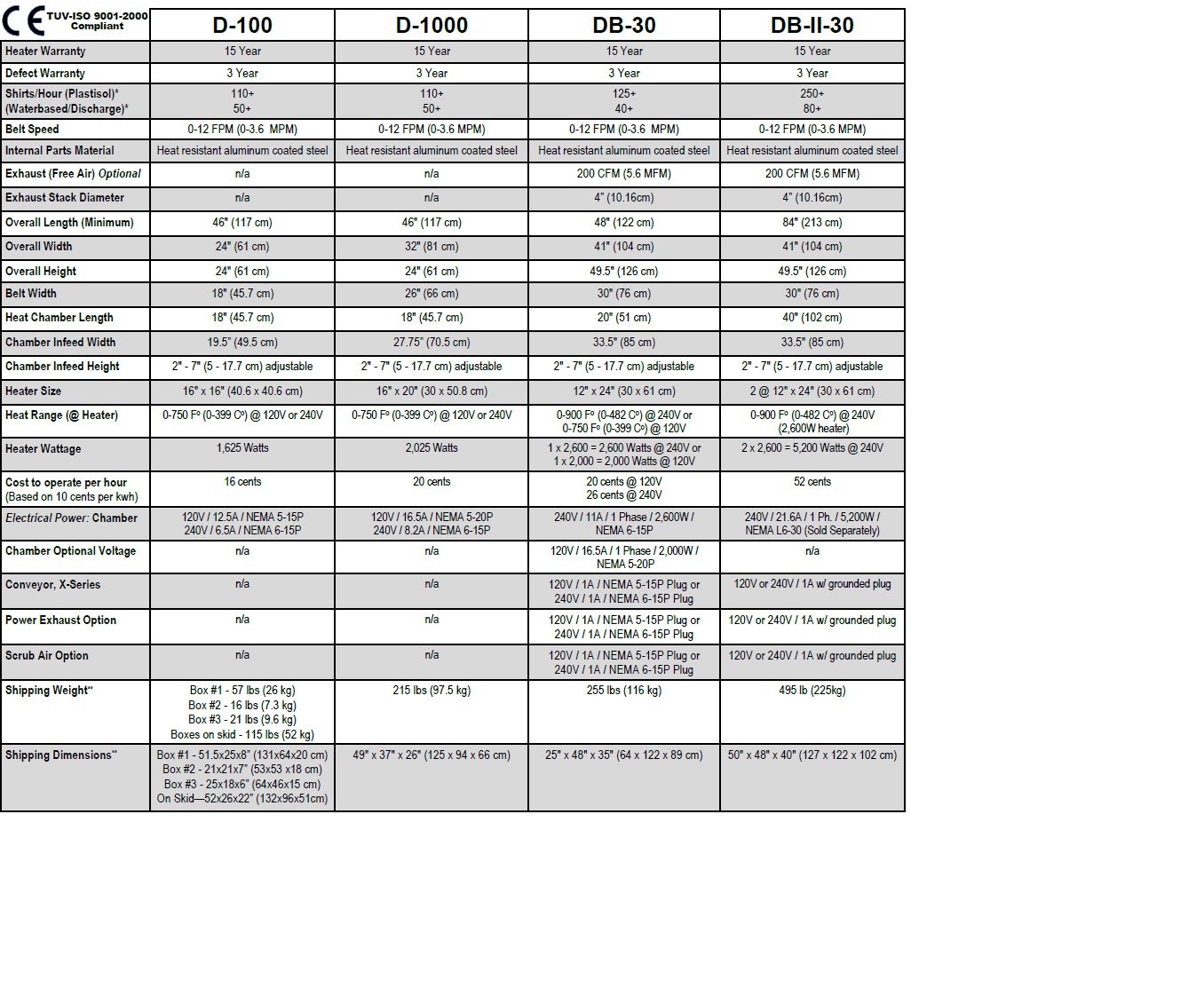

Technical Specifications
