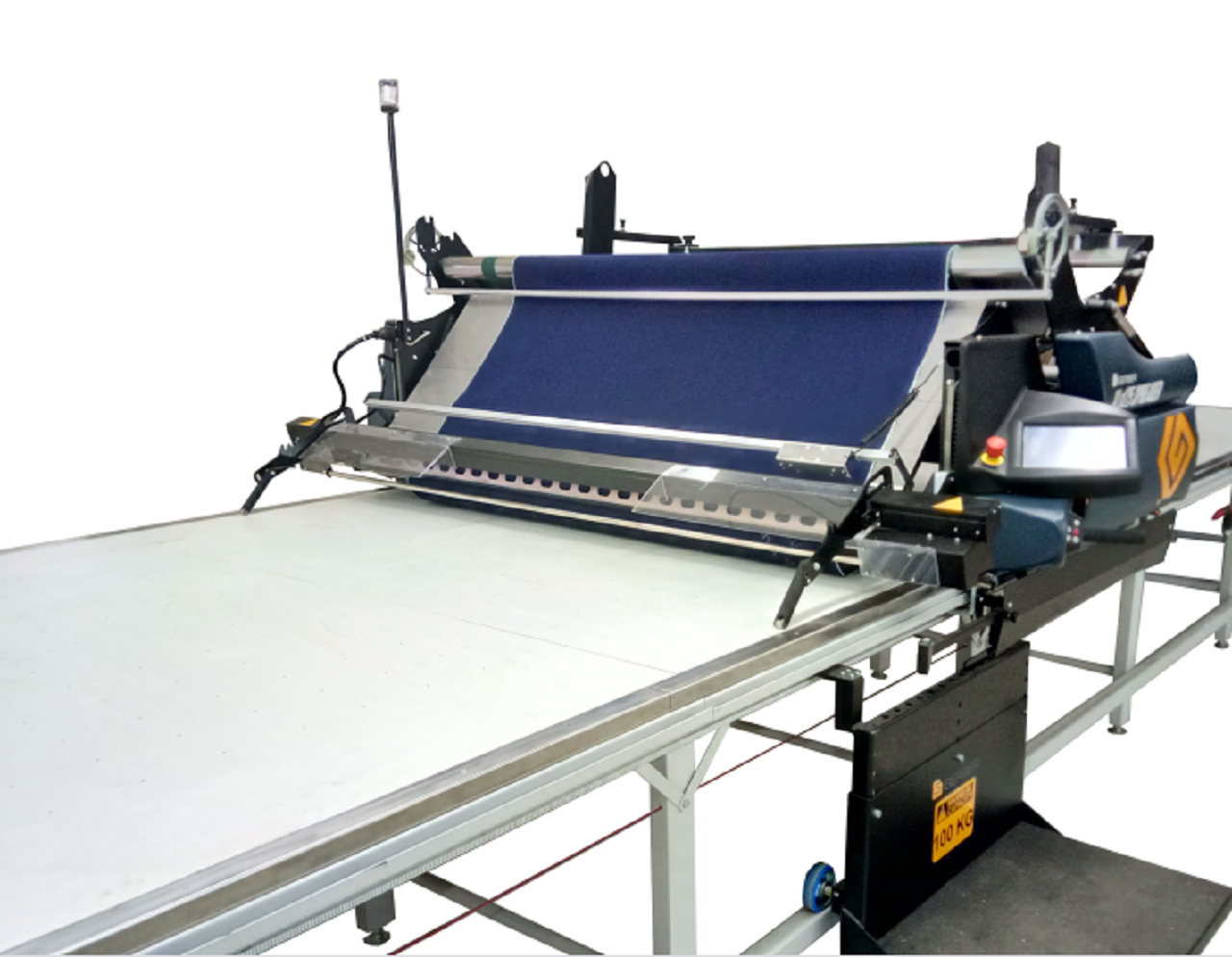

iTable

i-Table has been built to deliver, top to bottom.
From its hard-working, scratch-resistant table top, down to its heavy-duty, construction- grade steel base, the i-table is built to last — giving you the reliability you need to continually cut with confidence.

Discover how the innovative design and improved engineering of the IIGM I-Table Series can help you optimize your operations, increase efficiencies — and make you a smooth operator.
Available in five table widths, the I-Table’s flexible design framework makes it an intelligent solution when spreading manually or automatically. And it really shines when transporting your material to an automated cutter via dynamic airflow, making the perfect complement to our high-quality cutters and delivering an integrated, total quality solution that enhances efficiencies and boosts productivity.



Built To Deliver, Top To Bottom

•1 mm laminate on table top maximizes surface life by minimizing deep scratches and chipping associated with manual spreading and cutting.

•25 mm MDF board table substructure resists warping and ensures a flat table after many years of operation.

•Construction-grade steel provides

a stable base platform that supports up to 250 kg capacity spreaders.


Smooth Operation, Made Easy.


•I-Table leg assemblies make it easy for just one person to adjust to accommodate a wide range of table heights.

•A new design eliminates difficulties in re-configuring your tables simple, while still maximizing airflow.

•A completely integrated airbox allows consistent airflow across the whole table and helps to easily move heavy spreads down the table. This is critical to ensure proper alignment to an automatic cutter.
Precision-mating strips minimize snags by seamlessly integrating separate sections, allowing fabric to move smoothly across sections, and prevent hand-cutting blades from getting caught and damaging uneven seams.

Technical Specifications

  1800 2000 2200 2400 2600
Table Width 180 cm/72 in. 200 cm/79 in. 220 cm/88 in. 240 cm/96 in. 260 cm/104 in.
Maximum Material Width 160 cm/62 in. 180 cm/71 in. 200 cm/80 in. 220 cm/88 in. 240 cm/96 in.
Table Depth 120/47.2 in.
Table Heigth Adjustable 75 cm-95 cm/ 29.5 in.-37.4 in.
Heavy Material Blower Requirements 1 Blower per 6 Meters (Also applies to material over 120 ply)
Blower Power requirements 3 x 220-240 volt + PE 50/60 Hz 10A/ 3 x 380-415 volt + N + 50/60 Hz 10A
Power Comsumptions 0.52 kW (Peak)
Power and Operator Rail Right or Left side Mount
Spread Weight Capacity 800 kgs/ 1763 lbs
Transfer Table Requirements Gerber G- Table or I-Table Series
