NS-870-30

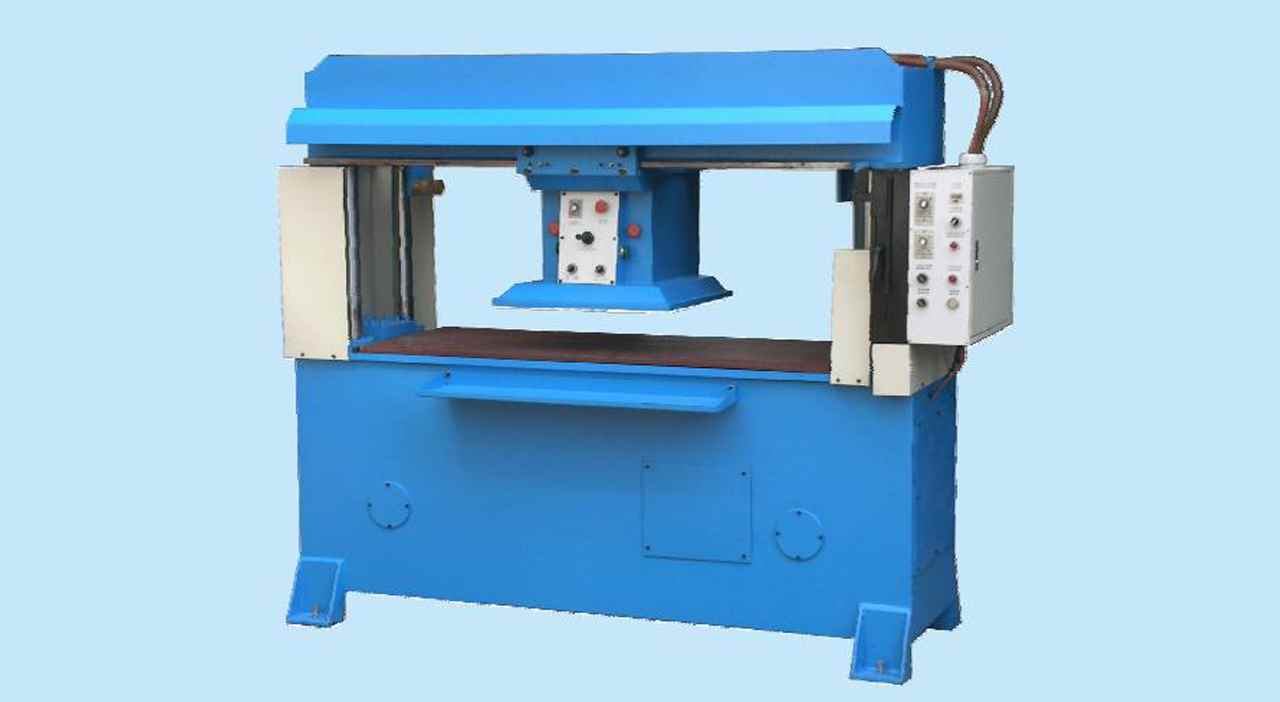

Traveling Head Hydraulic Dye clicking Press

Features

  • Suitable for leather, plastic, canvas, nylon, cardboard, wood, compound materials, package and all kinds of materials of one layer or multi-layer mould cutting.
  • Dual oil tank, precise four-pole automatic balance linking structure, ensure every cutting point in even force and every cutting place being cut at the same depth.
  • When cutting board is pressed down to contact the cutter it will cut slowly and automatically, which could make no tolerance between highest layer and lowest layer of cutting materials.
  • Special preset structure, match with cutter and cutting height to make an easy and precise stroke adjustment, equip with micro-adjust protection device to adjust the cutting depth and force, and prolong cutter and rubber board usage life.
  • Central automatic lubricating system ensures precision of the machine and improve durability of the machine.
  • Stroke head could move right and left, good operational view for convenient operation.

Technical Specifications

Model NS-870-30
Power Supply 3PH 380V
Total Power (kw) 4.7
Power (HP) 5+1
Cutting force (tons) 30
Top mould size (mm) 610x610
Cutting Area (mm) 1600x610
Stroke (mm) 50~165
Net weight (kg) 2700
Gross weight (kg) 2900
Machine size (mm) 2330x1180x1865
Packing size (mm) 2460x1400x2110

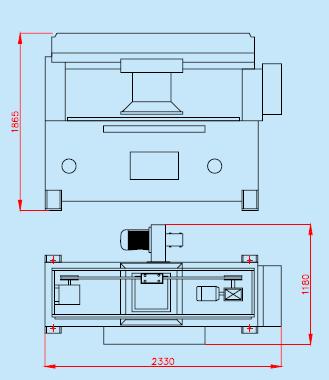

Machine Drawing
