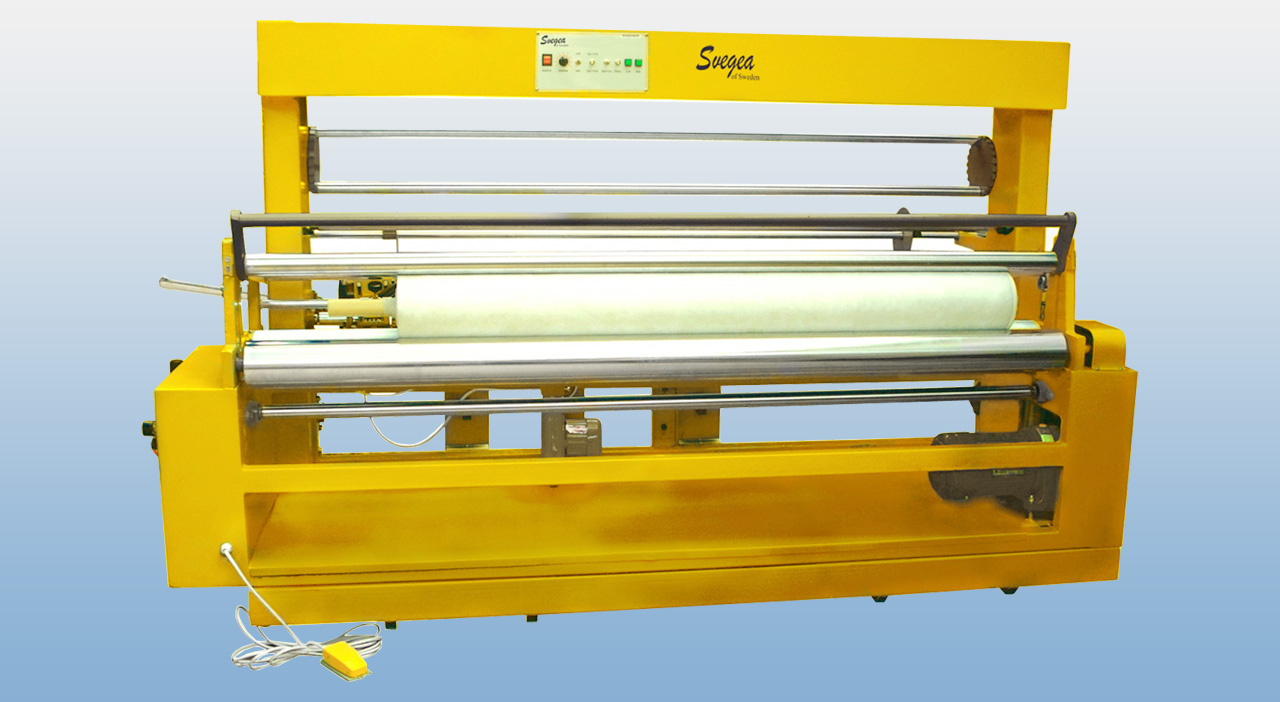

Bias cutter CMB 1800A2

Svegea's machines are economical yet robust.

Features

  • 2100 mm width capacity.
  • Bias bars adjustable between 300-900 mm.
  • Bias angle adjustable between 30-60 degrees.
  • Machine speed infinitely variable.
  • Meter counter.
  • Economically priced

Technical Features

TECHNICAL DATA Bias Cutter CMB 1800A2
Maximal operation width 2100 mm (82 2/3″)
Maximum roll diameter 400 mm (15 3/4″)
Diameter of fabric shaft 37.5 mm (1 1/2″)
Paper core inside diameter 38-40 mm (1 1/2 – 1 4/7″)
Bias angle 30-60 degrees
Air pressure 4-6 bar min
Motors
Motor power 2,2 kW
Power 380 V, 3-phase, 50 cycles
Machine dimensions
Length / Width / Height 270 / 110 / 140 cm (106 / 43 / 55″)
Net weight 450 kg
