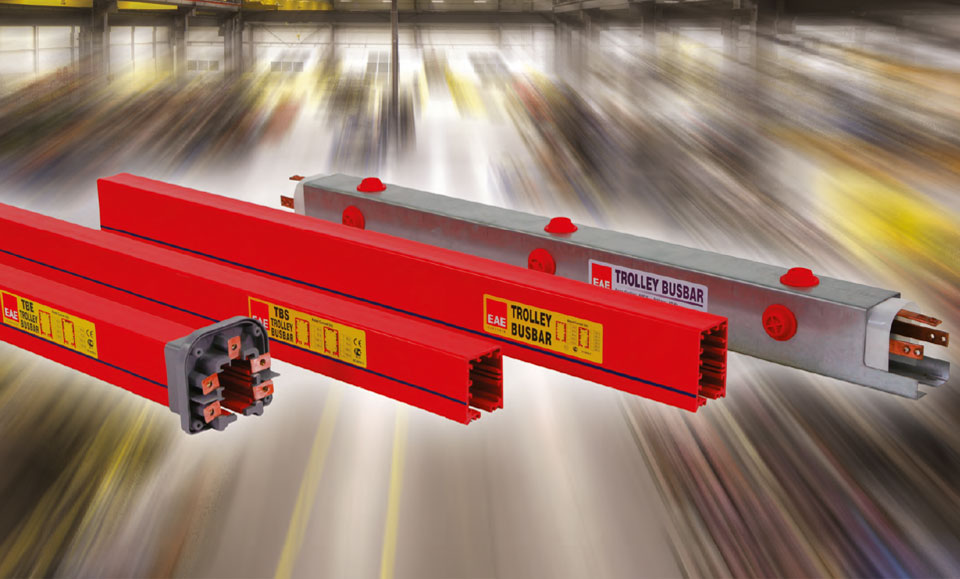

E-LINE TROLLY BUSBARS ( 35A ......250A)

"ELINE TB series Busbar Systems are used in movable manufacturing lines, automated stores. "

IIGM
Purchase Protection Plan

E-Line TB Busbar Systems are designed to supply power to the moving machines, cutting tables,pastal machines . The busbar's brushed (carboniferous) current reception car is mechanically connected to machine and provides uninterrupted power transmission by moving together with the machine.

Advatages of ELINE TB SERIES

  • Provides safe solution as there are no cables
  • PVC housing provide better safety
  • No need of expansion joints
  • No. of machines can be connected to single busbars
  • Continuous Uninterrupted copper conductors can be supplied upto 150m .
  • Easy installation

Technical Specifications

  • Current ratings available in 35A / 63A / 80A / 100A / 125A / 160A / 200A / 250A
  • ELINE TB series available in 4 or 7-conductor (optional 3, 5, 6-conductor)
  • PVC body
  • 4m standard length

TBS Series Trolley Busbar Specifications



  • 40A / 75A / 105A / 130A current ranges
  • Standard 4 or 5 conductor
  • TBS system uninterrupted copper conductors
  • TBS system modular structure with in-body copper conductors
  •  4m standard length
  •  PVC body



TBS-TBE Current Reception Cars

  • It is from 35A up to 105A ( 4 carboniferous or 5 carboniferous).

TB Series Areas Of Usage

  • Bridge cranes
  • Monorail cranes
  • Fabric spreading and cutting tables
  • AS/RS storage systems
  • Moving playground systems
  • Moving door and ceiling systems
  • Installation and test lines
  • Monorail systems
  • Elevator systems
