E-Line FL/FLD

"32 AMPS Indoor special bus bar "

IIGM
Purchase Protection Plan

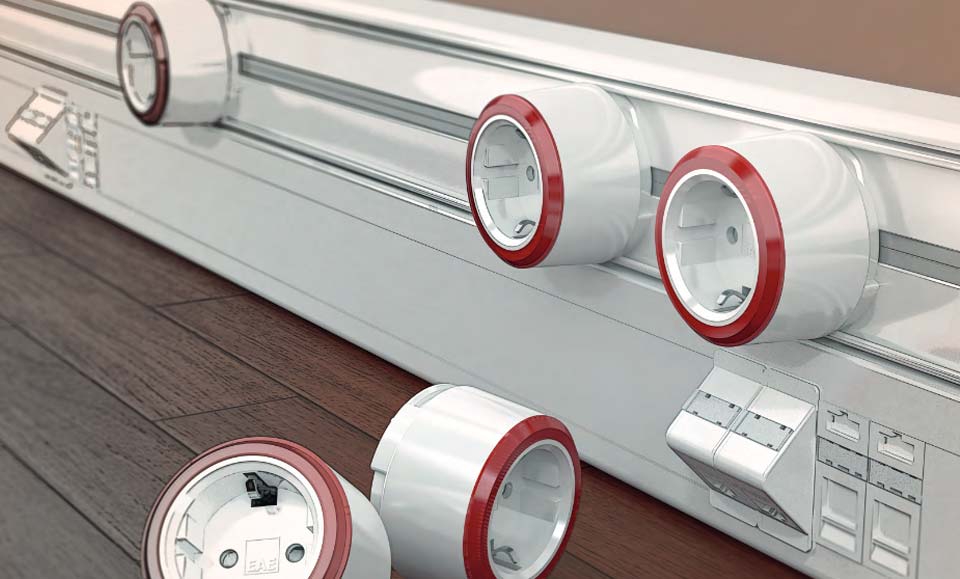

E-LINE FLD Indoor Busbar Trunking Systems provides for offices aesthetic, safe, practical and flexible solutions eliminating cable mess. E-Line FL/FLD can be installed on skirting or at the table level for the need of Main or UPS power, or for the need of structural cabling

Wherever power is needed without the need for additional cabling. Eliminates trailing cables and fixed sockets for low power distribution.

E-LINE FL/ FLD Indoor Busbar Trunking Systems can be easily mounted on any structure or surface using brackets.
Also, when its compact structure is used with connectors, return modules and cable section, it offers a perfect structural cabling infrastructure for data and phone requirements.

Specific power and UPS sockets can easily be installed with standard data, phone and TV sockets in modular structure. Stylishand special UPS sockets with LED illumination and various colours can be installed in any position spot without the need for a hand tool.

Technical Features

  • FL Busbar; 32A, 250V Operating voltage
  • Power or UPS; 16A, 250V (protected)
  • IP2X Protection Class
  • Use of sockets in various colours for mains or UPS circuits
  • Single phase circuit (3 conductors); L+N+(PE) (65x28 mm)
  • Aesthetic, safe, practical and flexible structure
  • Easy and fast mounting
  • Standard length is 1m and 2m
  • Standard color is white (RAL 9003). Refer to page 6 for different color and texture coating selections
  • FLD is capable of containing data cables and enables to use data and telephone sockets on the housing without using socket mounting plates

Applications

  • Offices
  • Workshops
  • Stores
  • Hospitals
  • Laboratories
  • Airports
  • Schools
