E-Line DK

"Underfloor outlet solutions "

IIGM
Purchase Protection Plan

Power and data requirements which increase rapidly in all kinds of plants, worksites and living areas today show themselves in the new building designs. For this reason, flexible, modular and modern infrastructure systems that can be adapted to the rapidly changing and continuously increasing requirements in new buildings are gaining importance.

Our E-Line DK group products are

  • Under-screed channel, junction and output (socket) boxes,
  • Raised floor distribution and output (socket) boxes,

They offer flexible, modular, esthetic and safe solutions that you may need accordingly in the future.

General Features

EN 50085-2-2: 2008 Standard conformable production and DEKRA type test certificate are available.

Products are divided into two groups in terms of main functions
1- For under-screed usage; pipe, cable conduit, junction and output (socket) boxes.
2- For raised floor usage; output (socket) boxes.

Technical Features

Under-Screed Junction Sets

  • Galvanized sheet iron or aluminum side body options are available.
  • Single (360x360mm) and dual (360x720mm) junction options are available for sheet iron side body.
  • For aluminum side body; heavy-duty type, 4mm-thick top sheet iron and junctions in 2 different dimensions (360x360mm. / 450x450mm.) are available.
  • Different options are available with minimum screed heights of 60 and 70mm. In sheet iron side body product, 20mm pre-screed and 15mm post-screed height adjustment can be made; In aluminum side body product, 20mm pre-screed and 30mm post-screed height adjustment can be made.

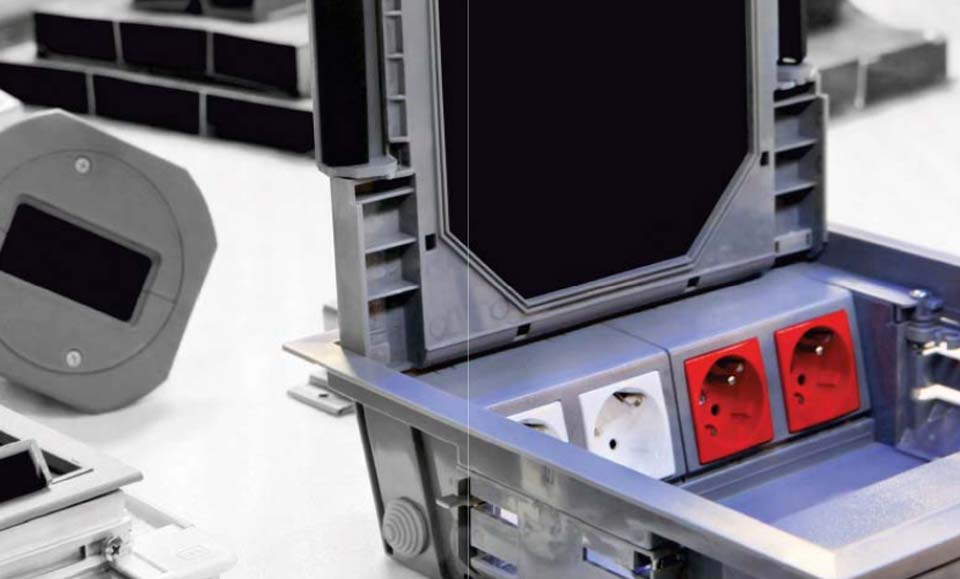

Under-Screed Output (Socket)

  • Choices suitable for carpet, parquet, ceramic and granite (marble) are available.
  • Nine (9) different types of options with a cover structure reinforced with a plastic body and sheet iron are available.
  • Different socket capacities are available from 3 modules to 24 modules.
  • There are 3 different color options as grey, brown and black.
  • Protected cable output windows and ergonomic cover opening handles are available.
  • Cover structure is suitable for two-way usage.
  • Rich socket and accessory options in modular structure are available.

Under-Screed Cable Conduits

  •  Two different height options of 25mm and 35mm made of pre-galvanized sheet iron are available; 5 (five) different width options in addition to 200mm standard are available in 120mm, 180mm, 215mm, 240mm and 300mm; 120mm option has 2 compartments and others have 3 compartments.
  • Thanks to its special seamless design, damage to the wires passing through it is prevented; use of maximum space in the conduit is ensured.
  • Alternative products with a minimum 58mm screed height and a post-screed height adjustment of 20mm thanks to its special junction structure that allow cable outputs on the conduit in 50cm intervals are available.
  • Rich accessory options that provide ease of installing and cable drawing are available.

Raised floor output (socket) boxes

  • For raised floors; three (3) different types of options with a cover structure reinforced with plastic body and sheet iron are available.
  • Options suitable for carpet, parquet, ceramic and granite (marble) coated floors are available; with the height adjustment mechanism it can be used in floors with a thickness of minimum 25mm and maximum 60mm.
  • Different socket capacities are available from 3 modules to 24 modules.
  • There are 3 different color options as grey, brown and black.
  • Protected cable output windows and ergonomic cover opening handles are available.
  • Cover structure is suitable for two-way usage.
  • Rich socket and accessory options in modular structure are available.



Applications

  • Banks
  • Offices and work places, administration buildings
  • Hotels
  • Hospitals
  • Schools, private teaching institutions
  • Shopping centers
  • Conference halls
  • Call centers
  • Session halls
  • Cinemas and theater buildings
  • Industrial plants
  • Tourist facilities
