E-Line DABLINE

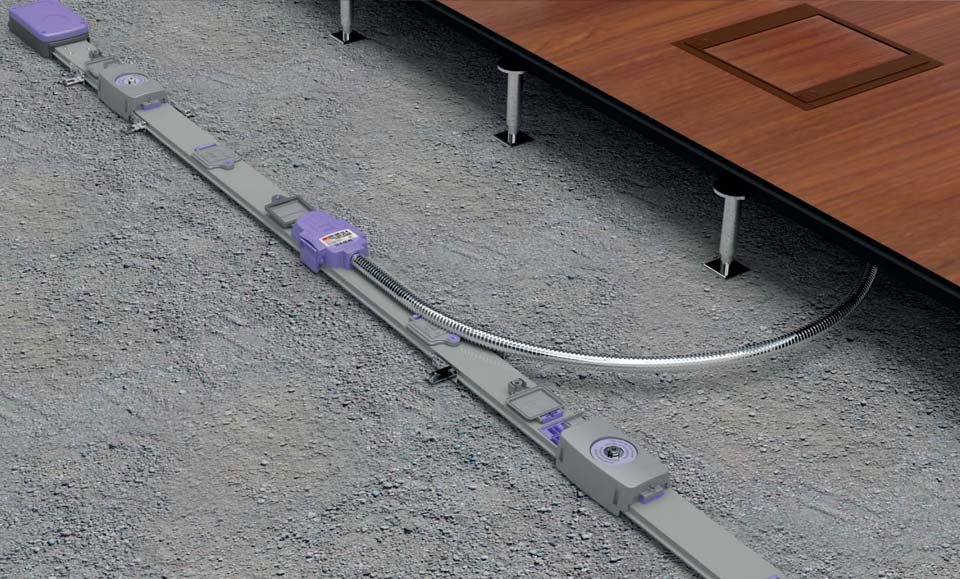

DABLINE busbar systems, which has different color options, is used for raised floor applications in offices. Small size of DABLINE makes it possible to install the system into very narrow places even up to 50mm floor height.

Tap-Off Units

• 13A, 16A, 32A tap off plugs ( with MCB or empty)
• For 32A used tap off box

Technical Features

• Rating Currents : 63A or 80A,
• 1200 – 2400 – 3000 mm optional straight lengths,
• Plug-in outlets every 300mm or 600mm option,
• IP55 Protection Degree,
• Halogen Free plastics up to 960 °C Fire rating,
• Keyed Tap-off Plugs,
• The springed contacts of busbar are silver plated,
• On the conductor,full length isolation that provides the security of life and property againts danger below which could come from outside,
• Earthing continuity and installation at joint point are provided by using single bolt,
• Each busbar length is complete with integral floor fixing brackets,
• IP covers hinged on plug-in windows,
• 2, 3, 4, 5 conductor options ( clean earth optional),
• Single Phase (for UPS and mains) 2 separate circuit possibilities for 2 separate busbars or for the same plug (mains, UPS),
• Addressable current reception units in different colors for the mains and UPS

Applications

• Banks,
• Business Centres,
• New Generation Offices,
• Hotels,
• Hospitals,
• Cinemas and theatres,
• Conference Centres,
• Educational Building,
• Tourist Facilities etc.
• In all kinds of buildings and alike equipped with raised floor application.
