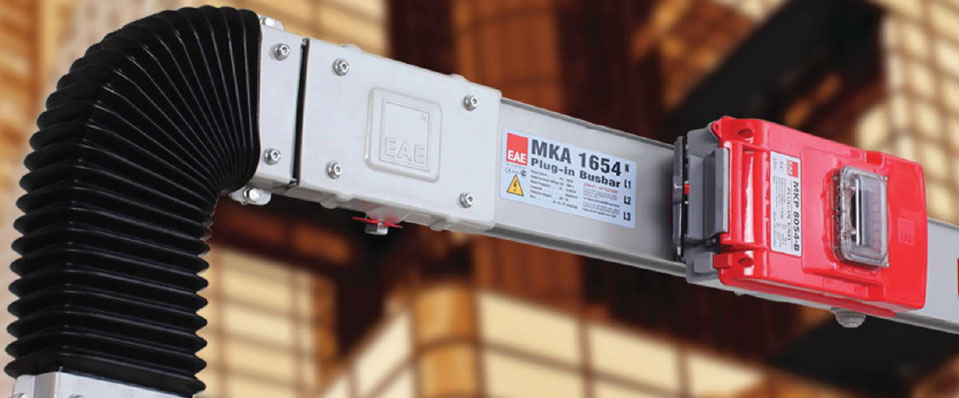

E-LINE MK (100A - 160A - 225A)

"Flexibility "

IIGM
Purchase Protection Plan

E-LINE MK busbars are small power range busbar systems which provide flexible and cost-effective solutions for the transmission and distribution of electricity in small-sized enterprises, workshops and industrial facilities.

The E-LINE MK range can be used where the different amounts of energy is required through the range of plastic tap of boxes.

Advantages of ELINE - MK

  • Fast and easy mounting.
  • Hinged and locked IP55 covers.
  • 10 plug in points for every 3Mtrs length.
  • Single bolt construction.



Technical Features

  • Current ratings for Aluminium conductor 100A, 160A
  • Current ratings for Copper conductor 100A, 160A, 225A
  • 0.6 mm Thick Epoxy painted (RAL 7038) Galvanized Housing
  • Rated Insulation Voltage shall be 690V
  • Conductors are fully tin plated
  • 4 or 5 conductors
  • Special Block Joints
  • Self-Extinguishing Materials (UL-V0) for Tap of Box
  • IP55 protection class
  • Clean Earth option

Tap Off Boxes

  • Three phase output boxes with DIN mounted fuse holders (10x38 mm) up to 16A, 40A or 80A (empty or fuse included)
  • The tap off box shall comply IP2X requirements, while it is plugged into the busbar and the lid is open.
  • Three phase output boxes with 63A D02 plug fuse (empty or fuse included)
  • Tap off boxes with MCB (miniature circuit breaker) rated up to 16A (empty or including the circuit breaker)
  • 80A special Design Data Centre Tap-off boxes

Applications

  • Small enterprises
  • Local production areas in factories
  • Workshops
  • Textile Industries
  • Automobile Industries
  • Shopping Malls
  • High Rise Buildings
  • Hospitals
  • Hotels
  • Large Markets
  • Data Centers
