E-LINE KO-II (160A...800 A)

"Reliable Energy Distribution "

IIGM
Purchase Protection Plan

“E-Line KO II Series” are medium range Air-Insulated busbar systems to provide suitable solutions for electricity transmission and distribution in medium-sized buildings or industrial facilities. They can be used in horizontal or vertical applications. Itprovides a prefabricated and flexible electricaldistribution system for all factories engaged in mass production, like automobile plants, textile plants,furniture factories and for buildings where there is a need for a reliable power supply

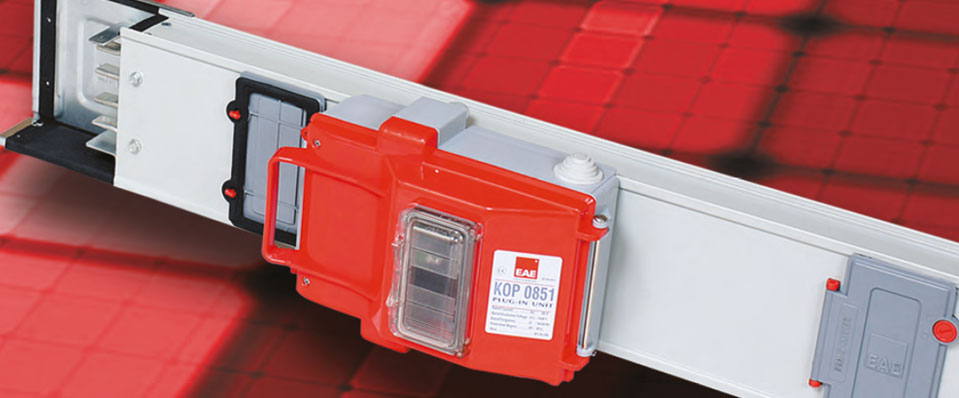

Tap off box solutions comprise sheet metal plug-in boxes with or without circuit breakers, and plastic plug-in boxes for small currents which are compatible with Miniature Circuit Breakers.

Advantages of ELINE KO-II Busbars

  • Fast, Flexible Engineering
  • Fast and Easy Mounting
  • Safe Power Distribution and Transportation
  • Lower Total Installed Cost
  • Flexible Power Supply
  • Modern Appearance
  • Lower Life Cycle Cost.

Technical Features

  • Current ratings for KOA II Aluminum conductor series 160A / 250A / 315A / 400A / 500A / 600A / 630A / 800A
  • Current ratings for KOC II Copper conductor series 250A / 315A / 400A / 600A / 800A
  • Ingress Protection Degree - IP55
  • Copper and Aluminium conductors are tin plated along their length
  • Nominal isulation voltage shall be 1000V
  • Cross-section of neutral conductor is the same as the phase conductors.
  • ELINE - KO-II Busbar shall have ISO CERTIFICATION - ISO 9001 and ISO 14001
  • ELINE - KO-II is available in 4, 4,5 or 5 conductors\
  • Housing shall be galvanized steel
  • E-Line KO- Busbars are "Single bolt joint”construction.
  • Plug-in tap off outlets at every 50 cm on both sides as standard.
  • Clean earth option

Tap Off Boxes

  • Tap off boxes up to 80A shall be manufactured of (850 GLW) type plastic material.
  • Tap off boxes from 160A up to 400A shall be manufactured of sheet steel and epoxy painted RAL 3020
  • Three phase tap off boxes with DIN mounted MCB up to 40A or 80A (empty or fuse included)
  • Tap off boxes with SYK switch fuse up to 160A, 250A and 400A (excluding fuses)
  • Tap off boxes shall be suitable for any brand of  MCCB/MCB with current ratings up to 160A, 250A and 400A
  • Special design Tap of Box for data center applicatiion are available.

Applications

  • Production areas in factories
  • Textile facilities
  • Furniture facilities
  • Automotive factories
  • Automotive sub-industry
  • Shopping malls
  • Exhibition centres
  • High-rise buildings
  • Hotels
  • Hospitals
  • Business Centres
  • Data Centers
