E-LINE KB (800A...6300A)

"Ease at Planning. "

IIGM
Purchase Protection Plan

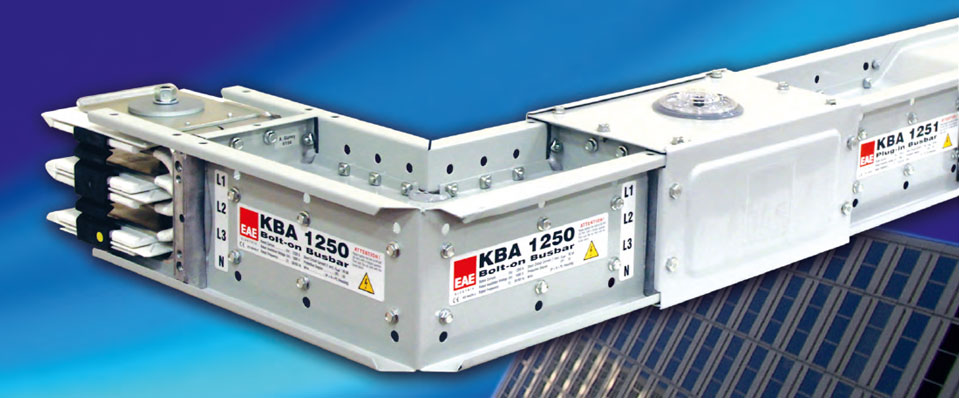

E-LINE KB Range Compact Busbar Systems are used for vertical and horizontal distribution and transmission of energy in facilities where large amounts of power are required. (plug-in or bolt-on type) The KB range can also be used in areas of facilities and buildings for power transmission, e.g. between transformers and switch boards where tap off boxes are not required.

Advantages of E-LINE KB Compact Busbar

  • High short circuit endurance
  • Low voltage drop in comparison to cable systems
  • Special alloy metal enclosure provides higher mechanical resistance and causes less electromagnetic interference
  • Better heat dissipation capability
  • Ingress Protection Degree (IP55 , IP65 and IP67 optional)
  • Single - bolt joint construction
  • Requires less space in comparison to cable systems

Technical Features

  • Current ratings for KB Aluminum conductor series: 800A / 1000A / 1250A / 1600A / 2000A / 2500A / 3050A / 3100A / 4000A / 4250A
  • Current ratings for KB Copper conductor series : 1000A / 1250A / 1600A / 2000A / 2250A / 2500A / 3000A / 3600A / 4250A / 4400A / 5300A / 6300A
  •  Busbar shall have ISO CERTIFICATION - ISO 9001 and ISO 14001
  • Ingress Protection Degree (IP55 , IP65 and IP67 optional)
  • Nominal insulation voltage shall be 1000V
  • 1.5mm thick GI housing
  • Al or Cu conductors are fully tin plated
  • Class B insulation (2 layers of polypropylene with 3 layers of Mylar)
  • 4, 4.5 or 5 conductors
  • Clean Earth option



Different Types to suit various applications

  • Plug-in type (Standard 2 plug-in outlets on each 300 cm length)
  • Bolt-on type (outlets only at joint)
  • Plug-in window number can be increased optionally

Tap Off Boxes

  • 160A, 250A, 400A and 630A are in available Plug-in or bolt-on type tap off boxes (with standard SYK switch fuse or with or without any make MCCB's).
  • 800A and 1000A are available in Bolt-on type tap off boxes ( with any make MCCB's and can be supplied with or without the MCCB)

Applications

  • Production areas of factories and main energy centers
  • Automotive factories
  • Automotive sub-industries
  • High-rise buildings
  • Skyscrapers
  • Hotels
  • Hospitals
  • Business Centers
  • Malls
  • Iron and steel factories
  • Dockyards
  • Power plants
  • Data Centers
