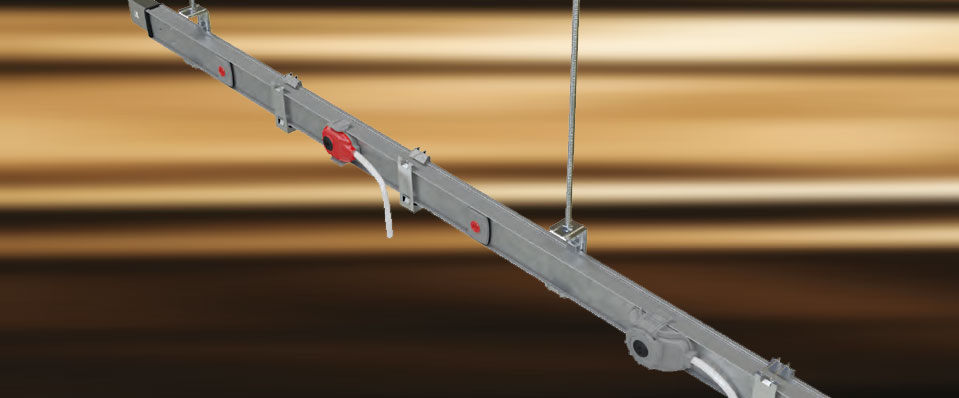

E-LINE KAP 40A - 63 A

"Modular Structure "

Purchase Protection Plan

ELINE KAP Series are small power range busbar systems.energy needs of small enterprises powering small machines, sewing machines , hand and machine tools. The KAP range physical dimensions and construction of tap off plugs are similar to those of KAM ranges.


Advantages of E-LINE KAP SERIES

  • Electrolytic copper conductors are continuously tin plated and insulated along their full length. (Except tap-off positions) with a self extinquishing plastic sleeve.
  • Quick, easy and reliable mounting.
  • Plugs with phase indication
  • Tap-off plugs and boxes; are designed to prevent improper use of busbar.
  • Silver-plated joint contacts are designed to minimise joint contact resistance.

Technical Features

  • ELINE KAP Series are availble with current ratings:  40A or 63A
  • Ingress Protection class IP55
  • ELINE KAP can be provided with 2, 3, 4 or 5 conductors
  • Copper conductors are fully tin plated and insulated
  • Plug-in tap off outlets at every 75 cm as standard
  • Three-phase tap off boxes 32A available with or without MCB or blade-type fuse
  • Single-phase plugs 16A available with 5x20mm fuse or without fuse.


  • Small production areas in factories
  • Ready-made clothing facilities
  • Workshops
  • Small industrial facilities
  • Malls
