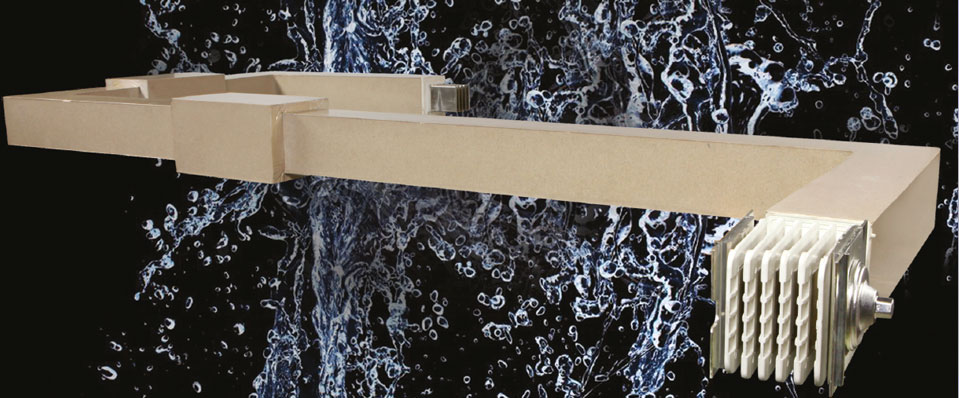

E-LINE CR (630A...6300 A)

"Relaible for under water ducting "

IIGM
Purchase Protection Plan

ELINE CR Series user between switch boards & transformer galleries. ELINE-CR Cast Resin Busbars with IP 68 protection if manufactured with "DURACOMP" a composite material of Epoxy resin and pure silicon which gives protection to E-Line CR busbar from external impacts.

Advantages of E-LINE CR Busbars

  • Ingress Protection Degree IP68
  • Corrosion-resistant
  • Chemical-resistant
  • Pest-resistant
  • Usable in tropical environments
  • High mechanical strength
  • High exterme external thermal resistant
  • Without stack effect
  • High short circuit endurance
  • Resitant to fire propagation
  • Current continuity during fire conditions
  • Compatible with E-Line KX busbars

Technical Features

  • Current ranges for CRA Aluminum conductor series: 630A / 800A / 1000A / 1250A / 1600A / 2000A / 2250 A / 2500A /3000A / 3200A / 3600 A / 4000A / 5000A
  • Current ranges for CRC Copper conductor series: 800A / 1000A / 1250A / 1600A / 2000A / 2500A / 3000A / 3200A / 3600A / 4000A / 5000A / 6300A
  • ELINE-CR busbars are designed and manufactured as IEC 61439-6.
  • Ingress Protection class IP68
  • Nominal insulation voltage shall be 1000V.
  • 3, 4, 4.5, 5 and 6 conductor options
  • Clean earth option
  • ELINE-CR can withstand 3 hours of continuous current under fire condition as per IEC 60331- 1
  • ELINE-CR has conformance to seismic resistance as per IEC 60068-3-3 ; IEC 60068-2-57 and IEEE 693 standards
  • 3 hours of fire barrier resistance in accordance with ISO 834
  • E60 and E120 current continuance under fire condition in accordance with DIN 4102-12
  • ATEX protection class

Applications

  • Galleries between Transformer and Panel
  • Oil and Gas plants
  • Cement Plants
  • Power Plants
  • Harbors and Shipyards
  • Food Premises
  • Tunnels and Underpasses
