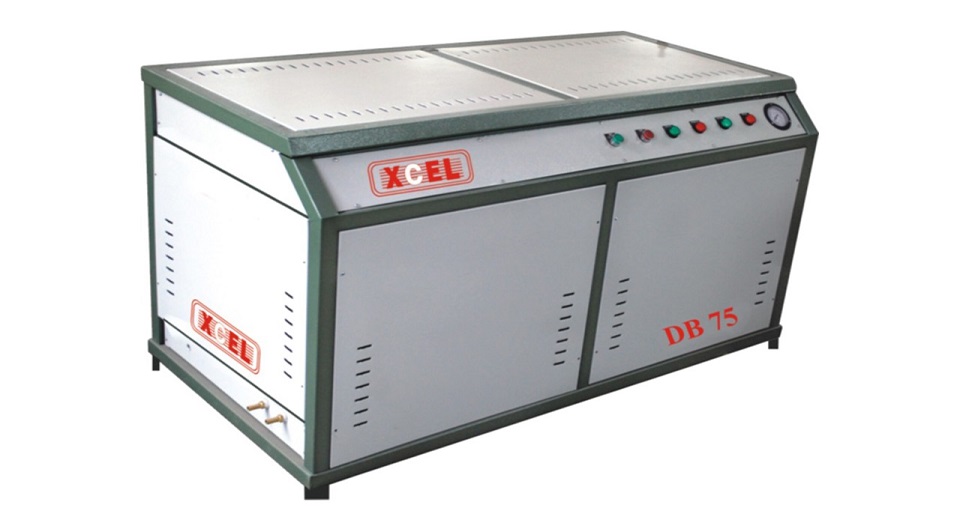

Shell n Tube - Horizontal Steamer

"Saves precious production time due to minimum maintenace "

IIGM
Purchase Protection Plan

Automatic diesel / PNG steamer

Features:

  • Automatic diesel / PNG steamer.
  • No heating effect or fumes, can be installed inside.
  • High efficiency and low diesel consumption.
  • Saves precious production time due to minimum maintenance.
  • The control panel is simple in design for trouble free operation.
  • Completely safe, multiple pressure switch control, steam relieve valve, auto water level control, auto cut off switches.
  • Works on the principle of reverse technology where the flame & gases reverse in air tight chamber resulting in complete combustion & absolute utilization of energy.
  • Panels are structure / hammertone coated & treated with anti-rust treatment for longer life.
  • Strong construction with seamless tubes in the seamless shell of 11 mm thickness.
  • Optional - Condensate separator.

Technical Specifications:

Model DB 35 DB 75 DB 125 DB 175
Steam output kg/hr 35 75 125 175
Steam pressure bar 6.0 6.0 6.0 6.0
Efficiency % 90 90 90 90
Pump hp 1.0 1.0 1.0 1.0
Power consumption kw 1.0 1.0 1.0 1.0
Voltage volts 220 220 220 220
Dimensions mm 915x815x875 1515x815x875 1920x815x875 2055x865x965
Weight kg 260 395 510 625
