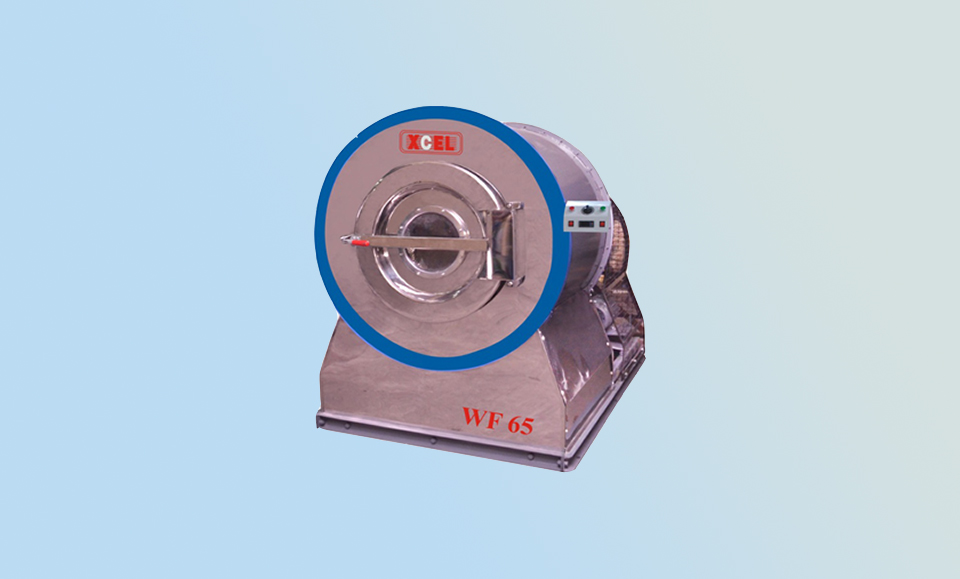

WF 65, Front Loading Washing Machine

"Electric heated / Steam heated / Heating through diesel / PNG Burner "

Purchase Protection Plan

WF 15, 35, 65, 120 Front Loading Normal Spin Washing Machine


Maintenance free construction

  • These are mainly stainless steel fabricated, mounted on channel frames, comes with total argon welding & single joint drum.
  • These erforations are punched and embosses in CNC machine for better circulation of fluid.
  • Optimum distance between drum & basket ensures minimum liquor ratio.

Water level / Drain

  • Glass level gauge with calibration for level indication, butterfly valve for instant, absolute drainage & ball valve for quick filling of water into the basket is provided.


  • Auto timed, auto temperature sensor, digital temperature indicator, auto reversing, safety devices, emergency stop facilities are built in.
  • Auto operation of water, steam & drain are available as options.


  • Heavy duty motor coupled with reduction gear box or idler shaft with key locking for main pulley ensures a smooth & soft drive.
  • Also available with optional AC drives for variable speed control & high spin extract.

Technical Specifications:

Model WF 15 WF 35 WF 65 WF 120
Capacity kg 15 35 65 120
Basket size mm/volume lt 800x350/175 950x475/336 1150x625/650 1250x950/1165
Wash motor/speed rpm 1 hp/960 2 hp/960 3 hp/960 5 hp/960
Door opening 530 530 605 605
Water connection inch 0.5 1.0 1.5 2.0
Drain inch 02 02 03 04
Heating steam consumption 15 kg/hr 30 kg/hr 60 kg/hr 100 kg/hr
Electric 07 kw 10 kw 14 kw 21 kw
Diesel fired 1.0 lt/hr 1.25 lt/hr 2.50 lt/hr 4.50 lt/hr
Dimensions mm 1020x1200x1400 1170x1500x1500 1370x1725x1650 1470x2100x1800
Weight kg 410 610 900 1350
