"Standard supplied with puller for strong and steady feeding"

IIGM
Purchase Protection Plan

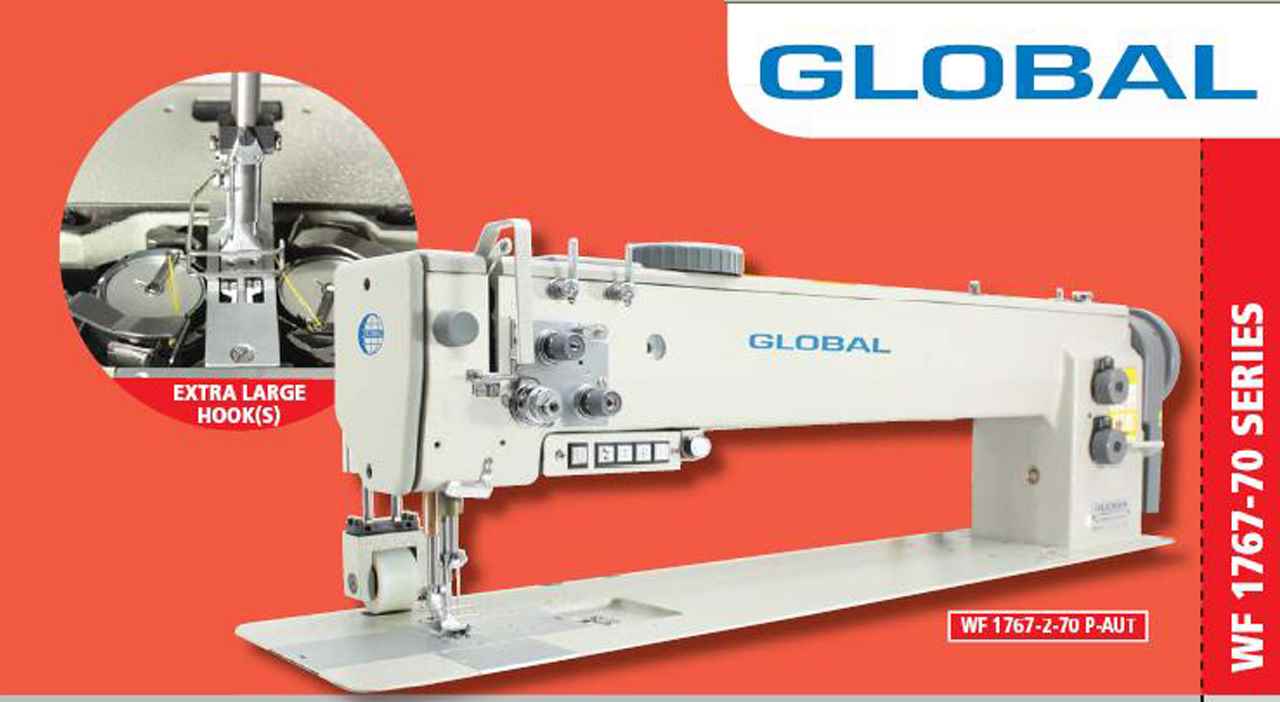

WF 1767-70 Series

High Speed Long-arm Walking Foot Machines with Puller

Series with Features

WF 1767-70 P-AUT

  • Single needle walking foot long arm machine with thread trimmer, automatic back tack, presser foot lift,quick stroke adjustment and integrated second stitch length for assembly and top stitching operations.
  • Standard supplied with puller for strong and steady feeding.
  • This machine has a 70 cm space between needle and frame.

WF 1767-2-70 P-AUT

  • Same as WF 1767-70 P-AUT, but with two needles.
  • Standard needle gauge 8 mm.


Technical Specifications

Model WF 1767-70 Series
Machine Speed Max 2400 spm
Oiling System Fully automatic
Stitch length Max 9 mm
Inner presser foot alternation 1 - 7 mm
Presser foot lift

By hand max 9 mm

By knee max 16 mm

Thread trimmer Standard (electric)
Back tack and presser foot lift Standard (pneumatic)
Needle type 135 x 17
Double needle type Optional needle gauges: 3,2 - 6,4 - 10 -12 mm
Space between needle and frame 700 mm
