Portal 3D-Robot-Sewing Unit KL 504

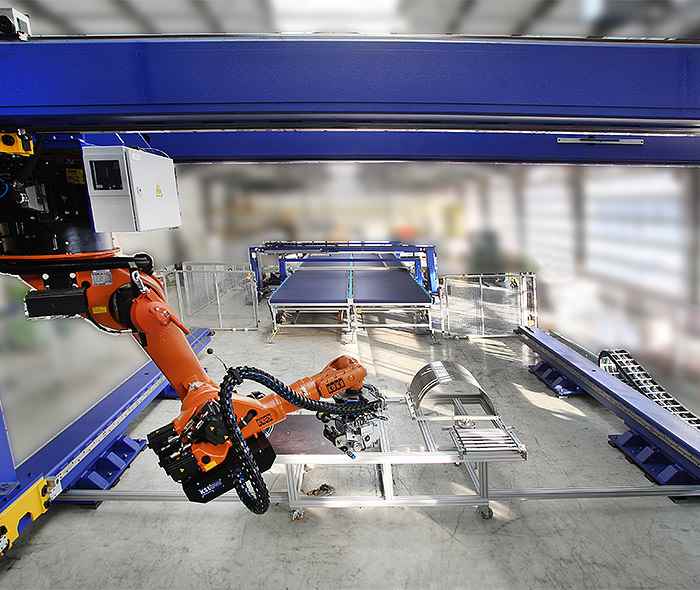

We develop and manufacture custom-made units for processing of virtually all composites (carbon fibred, glass fibred, aramid). Precise, fast and efficient, in all sizes, from profile or stringer, even complex 3D-components.

Our units (portal units, robot technology) are used for manufacture of layers, connecting fabrics (unidirectional, multiaxial) and for manufacture of sub-preforms and performs.

Configuration:

KL 504 Portal configuration:   Additional 3 axes for stitching end effectors: Communication software KUKA.PLC ProConOs Additional KUKA control cabinet for 3 axes plus accessories (mounted on top of the standard control cabinet) Controller amplifiers for 3 additional axes Robot control software: Techware software package: GripperTech, UserTech, ExpertTech

 6-axis industrial robot

150 kg max. payload capacity 2700 mm max. range of robot arm (orientation of stitching head(s) and individual shape of component may reduce the effective range for stitching operations! Standard robot configuration 7 m cable connection to robot control unit KR C 2
