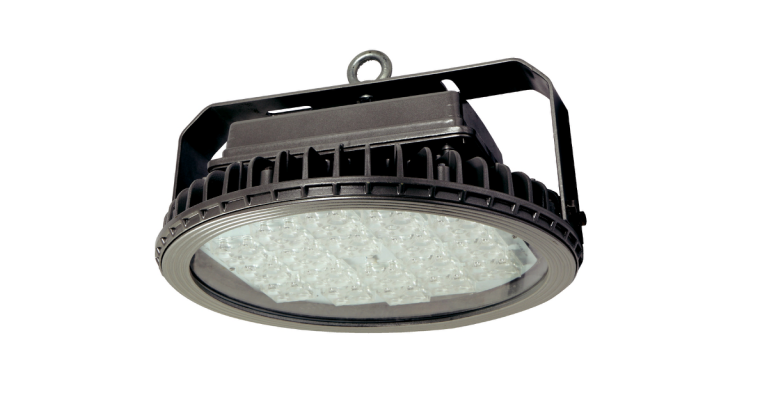

Endura Baybrite Saucer 180/200W

Benefits:

• Better lumens & longer lamp life
• High efficacy & lower power consumption
• Delivers high brightness & excellent illumination
• No harmful UV & IR radiations
• Environment friendly as it does not contain Mercury
• Instant light with low running temperatures
• Operating temperature: -10°C to +50°C
• Operating voltage range: 120 -270V
• Average life L70B50: 50000 hours

Product Features:

Housing

Aluminum alloy pressure die casted housing & control gear box for better heat dissipation and aesthetic appeal. 2 nos.PG9 gland is used for cable entry and loopin-loopout.

Finish

The fixture is epoxy powder coated with colour munshell grey finish.

Light source

High efficiency long life LEDs with lumen efficacy of >150 lm/W with view angle 120º to ensure better uniformity of light distribution.

Optics

High quality PC lens with optional narrow & wide beam angles for uniform distribution.

Cover

Tempered protective toughened glass, thermal shock and impact resistant fixed to the housing with SS screws.

Electronic driver

Built-In Potted IP67 electronic LED driver with APFC, lower THD, Open Circuit Protection, Over Voltage Protection, Surge Voltage Protection upto10kV with integral SPD & other safety test as per IS 15885 Part-2/Sec 13, IEC60598-1, 61547, 61347-2-13, EN 55015.

Mounting

Suspended by means of heavy duty nickel plated, forged eye-bolt provided with the fixture.
