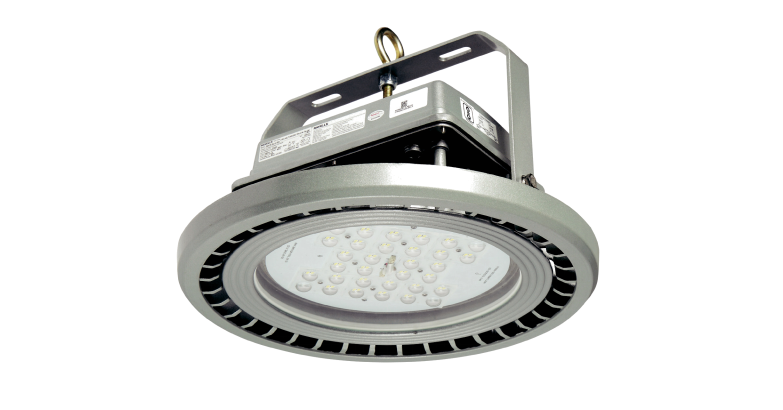

Baybrite Saucer WOPD

Energy saving, environment friendly & robust Mediumbay /Highbay LED luminaire with high efficacy.

Benefits:

• Better lumens & longer lamp life
• High efficacy & lower power consumption
• Delivers high brightness & excellent illumination
• No harmful UV & IR radiations
• Environment friendly as it does not contain Mercury
• Instant light with low running temperatures
• Operating temperature: -10°C to +45°C
• Operating voltage range: 140 -270V
• Average life L70B50: 50000 hours

Housing

Aluminum alloy pressure die casted housing & control gear box for better heat dissipation and aesthetic appeal. PG9 gland is used for cable entry and loopin-loopout.

Finish

The fixture is epoxy powder coated with colour munshell grey finish.

Light source

High efficiency long life LEDs with lumen efficacy of >150 lm/W with view angle 120º to ensure better uniformity of light distribution.

Optics

High quality PC lens with optional narrow & wide beam angles for uniform distribution.

Cover

Tempered protective toughened glass, thermal shock and impact resistant fixed to the housing with SS screws

Electronic driver

Buit In, electronic driver with APFC, lower THD, Open Circuit Protection, Surge Voltage Protection upto 10kV with Built In SPD & other safety test as per IS 15885 Part-2/Sec 13.

Mounting

Suspended by means of heavy duty nickel plated, forged eye-bolt provided with the fixture.
